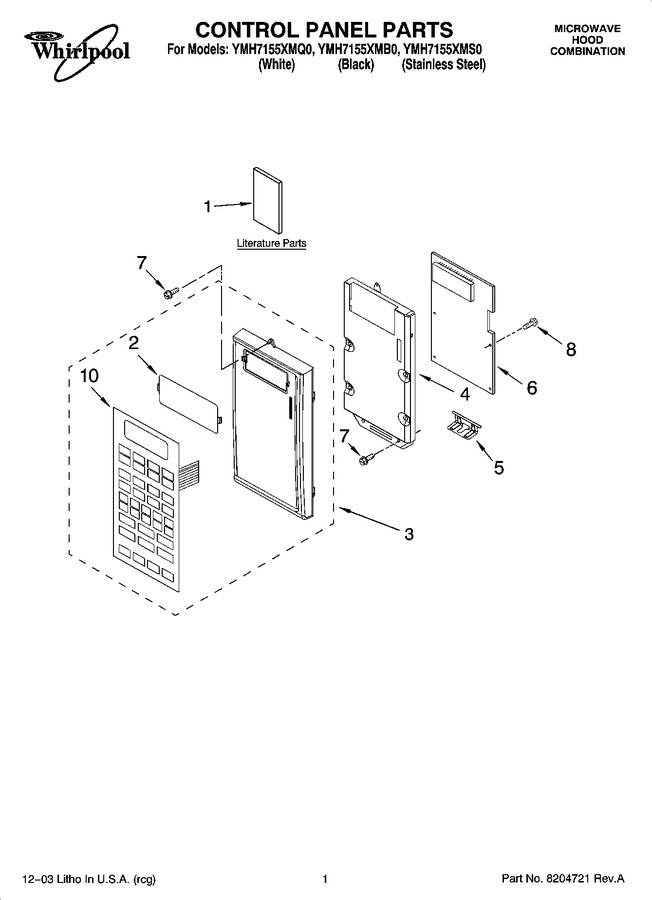

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8185483 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8183732 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8185485 | Literature Parts (tech Sheet Cook Guide Label) |
|
- | |||||
| 1 | LIT8185484 | Literature Parts (english) |
|
- | |||||
| 1 | LIT8204746 | Literature Parts (french) |
|
- | |||||
| 2 | 8183708 | Lens (not Serviced On Stainless) |
|
- | |||||
| 3 | 8205067 | Panel, Control (stainless Steel) |
|
$ 64.34 | |||||
| 3 | 8205065 | Panel, Control (white) |
|
$ 22.94 | |||||
| 3 | 8205066 | Panel, Control (black) |
|
$ 129.11 | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8204859 | Microcomputer |
|
$ 176.23 | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 10 | 8204771 | Switch, Membrane (black Stainless Steel (not Serviced)) |
|
- | |||||
| 10 | 8204770 | Switch, Membrane (white) |
|
- |
