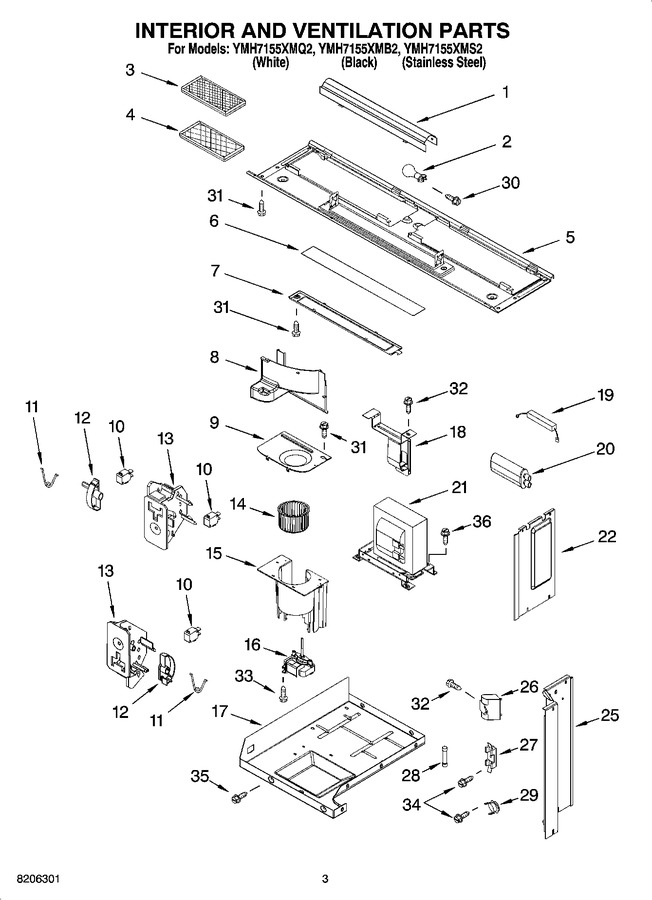

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4393688		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp (2)   (Replaces: 4393681)			Immediately	$ 6.61
3	6800		Filter, Charcoal   (Replaces: 8169645)			Immediately	$ 26.06
4	6802A		Filter, Grease   (Replaces: 4393790)			Immediately	$ 28.96
5	8185209		Plate, Bottom		Appelez-nous	-
6	8185210		Glass, Lamp		Appelez-nous	-
7	8184308		Holder, Glass		Appelez-nous	-
8	8205045		Guide, Air (magnetron)		Appelez-nous	-
9	8183823		Cover, Fan		Appelez-nous	-
10	8204656		Switch, Micro (3)		Appelez-nous	-
11	8169438		Spring, Interlock (2)				$ 10.69
12	8183824		Plate, Cam (2)				$ 5.70
13	8205572		Support, Interlock (2)   (Replaces: 4393595)				$ 6.26
14	8183825		Wheel, Fan				$ 33.72
15	8184310		Housing, Fan		Appelez-nous	-
16	8185211		Motor, Fan		Appelez-nous	-
17	8185212		Chassis		Appelez-nous	-
18	8184311		Holder, Capacitor		Appelez-nous	-
19	W11256462		Rectifier, H.v.   (Replaces: 8184664)			Immediately	$ 29.88
20	8206562		Capacitor, H.v.   (Replaces: 8184663)			Immediately	$ 108.83
21	8204844		Transformer, H.v.		Appelez-nous	-
22	8204657		Plate, Side (r)		Appelez-nous	-
25	8204658		Plate, Side (l)		Appelez-nous	-
26	4393709		Capacitor				$ 8.10
27	8184312		Holder, Fuse		Appelez-nous	-
28	W11707984		Fuse   (Replaces: 4393308)			Immediately	$ 41.27
29	8183703		Thermostat		Appelez-nous	-
30	8169474		Screw				$ 8.51
31	4393835		Screw				$ 11.83
32	4393472		Screw		Appelez-nous	-
33	4393833		Screw				$ 6.79
34	8169478		Screw		Appelez-nous	-
35	8169479		Screw				$ 6.26
36	4393839		Screw		Appelez-nous	-
