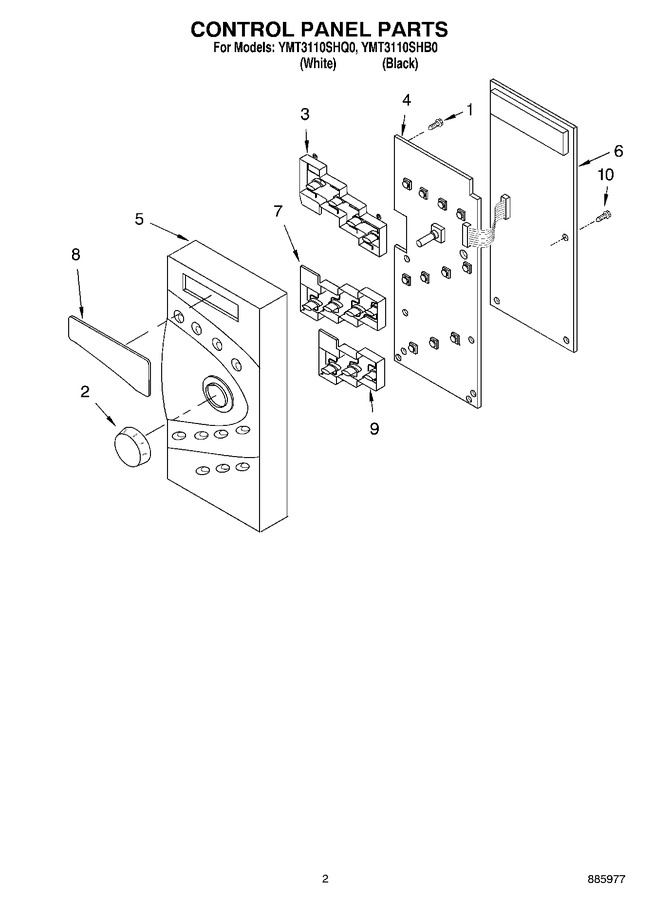

02 - Control Panel Parts


03 - Oven Cavity Parts


04 - Latch Board Parts


05 - Oven Interior Parts


06 - Base Plate Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358376		Screw		Appelez-nous	-
2	8171929		Knob (black)		Appelez-nous	-
2	8171928		Knob (white)		Appelez-nous	-
3	8171923		Button, Cook (black)		Appelez-nous	-
3	8171922		Button, Cook (white)		Appelez-nous	-
4	8171981		Pcb Assy		Appelez-nous	-
5	8171979		Control Panel (black)		Appelez-nous	-
5	8171973		Control Panel (white)		Appelez-nous	-
6	8171980		P.c.b Sub Assembly		Appelez-nous	-
7	8171924		Button, Clock (white)		Appelez-nous	-
7	8171925		Button, Clock (black)		Appelez-nous	-
8	8171982		Window		Appelez-nous	-
9	8171926		Button, Start (white)		Appelez-nous	-
9	8171927		Button, Start (black)		Appelez-nous	-
10	4358883		Screw		Appelez-nous	-
