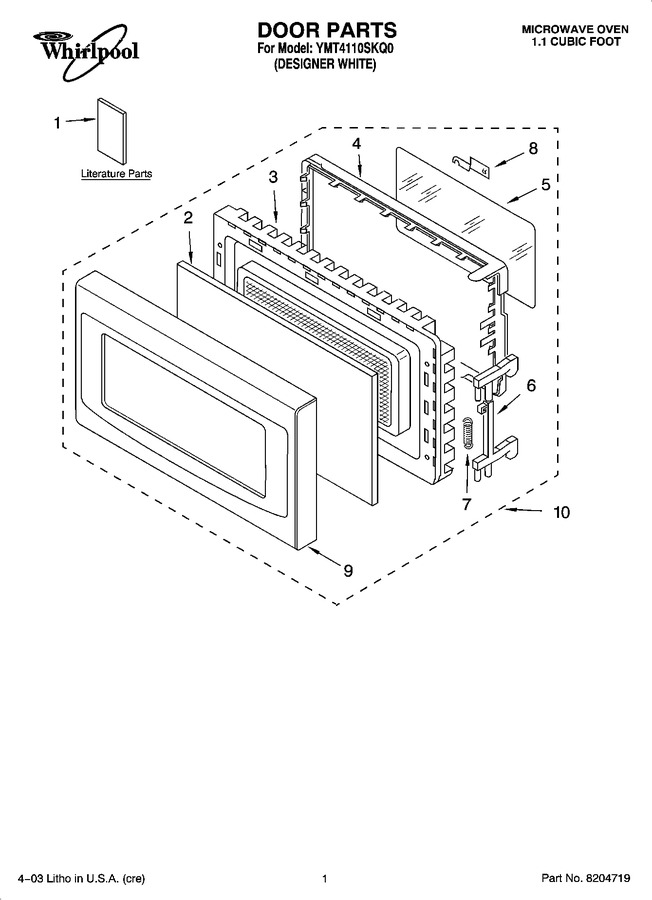

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8184557 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8204720 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8184561 | Literature Parts (cook Guide Label) |
|
- | |||||
| 2 | 8184256 | Front Screen |
|
- | |||||
| 3 | 8184255 | Door Frame Assembly |
|
- | |||||
| 4 | 4359842 | Choke Cover |
|
- | |||||
| 5 | 8184257 | Tape, Seal |
|
- | |||||
| 6 | 8184263 | Latch |
|
$ 5.65 | |||||
| 7 | 8171918 | Spring, Latch |
|
$ 51.20 | |||||
| 8 | 8184265 | Cap |
|
- | |||||
| 9 | 8184262 | Panel, Door |
|
- | |||||
| 10 | 8184260 | Door Assembly |
|
- |
