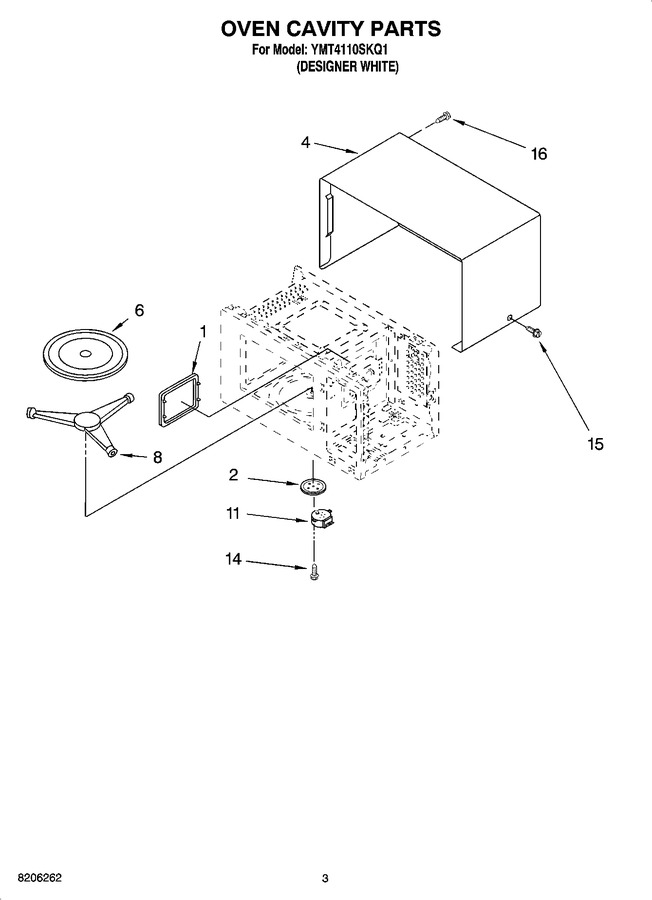

03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184278 | Canopy |
|
$ 27.95 | |||||
| 2 | 8184281 | Mount |
|
- | |||||
| 4 | 8184280 | Outer Case |
|
- | |||||
| 6 | 8171807 | Tray, Glass |
|
- | |||||
| 8 | 8184282 | Turntable Support |
|
- | |||||
| 11 | 8184283 | Motor, Synchronous |
|
- | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | W11245710 | Screw (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 16 | 8171862 | Screw |
|
- |
