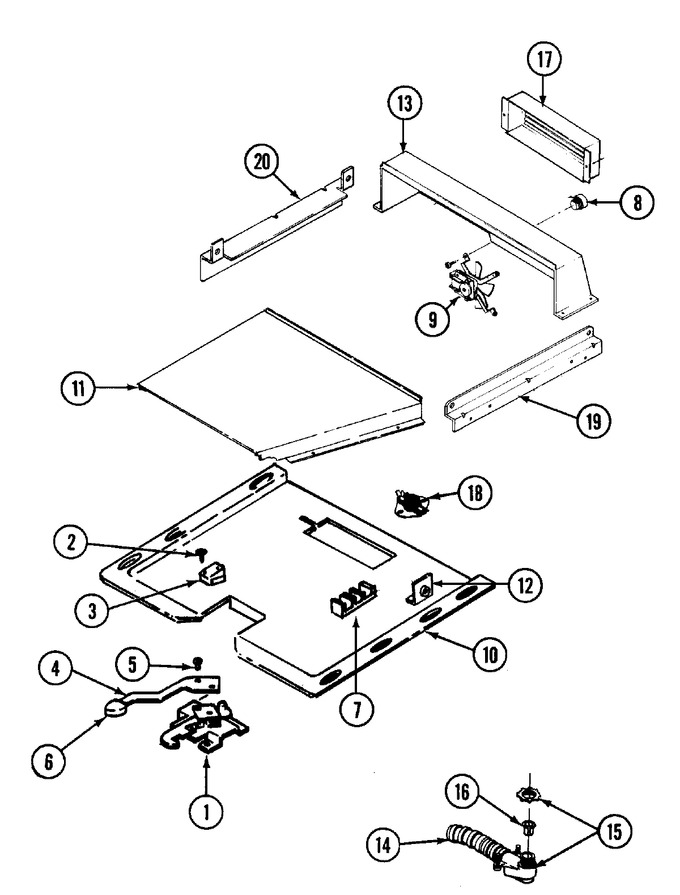

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4804F028-60 | Insulation, Latch Assy. | 01 |
|
- | ||||
| 2 | 7101P130-60 | Screw, Latch Switch | 01 |
|
- | ||||
| 3 | 7003P051-60 | Insulation, Fiberboard | 01 |
|
- | ||||
| 3 | 7403P228-60 | Switch, Door Latch | 01 |
|
- | ||||
| 4 | 8009P020-60 | Lever | 01 |
|
- | ||||
| 5 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 01 |
|
$ 4.29 | ||||
| 6 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 6 | 7701P133-60 | Handle, Door Latch (wht) | 01 |
|
- | ||||
| 7 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 01 |
|
Immediately | $ 31.65 | |||
| 8 | 7416P002-60 | Fuse | 01 |
|
- | ||||
| 9 | 7427P010-60 | Fan Assy. | 01 |
|
- | ||||
| 10 | 3804F111-51 | Retainer, Top Insulation | 01 |
|
- | ||||
| 11 | 3604F206-45 | Shield, Heat | 01 |
|
- | ||||
| 12 | 3605F174-51 | Plate, Conduit Tubing | 01 |
|
- | ||||
| 13 | 4001F090-51 | Housing, Fan | 01 |
|
- | ||||
| 14 | 3414F098-44 | Tubing Conduit | 01 |
|
- | ||||
| 14 | 5140A032-60 | Wires, Tubing Conduit | 01 |
|
- | ||||
| 15 | 7417P005-60 | Connector, Conduit | 01 |
|
- | ||||
| 16 | 8008P017-60 | Grommet | 01 |
|
- | ||||
| 17 | 4005F374-51 | Cover Fan | 01 |
|
- | ||||
| 18 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 18 | 7403P313-60 | Switch, Hi-limit | 01 |
|
- | ||||
| 19 | 3801F287-51 | Brkt, Mtg-r | 01 |
|
- | ||||
| 20 | 5170P098-60 | Harness Sensor Probe | 01 |
|
- | ||||
| 20 | 5185D283-60 | Harness, Lower | 01 |
|
- | ||||
| 20 | 3830F008-51 | Raceway, Wire | 01 |
|
- | ||||
| 20 | 3801F286-51 | Bracket, M/wave Mtg. (lt) | 01 |
|
- |
