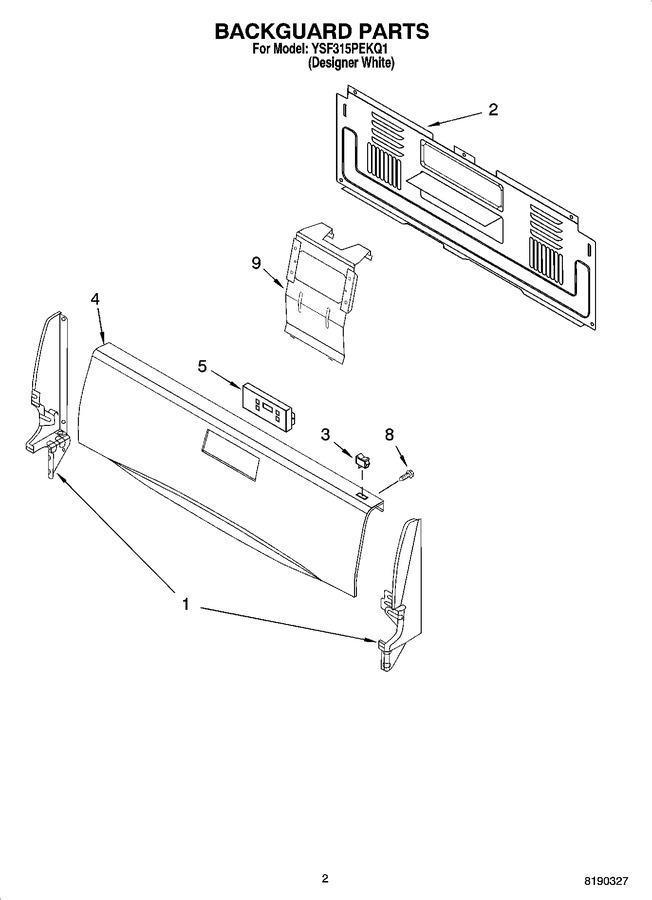

02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98005336 | Endcap (white Left) |
|
$ 79.14 | |||||
| 1 | 98005337 | Endcap (white Right) |
|
$ 79.22 | |||||
| 2 | 98006083 | Rear, Backguard |
|
- | |||||
| 3 | 98006393 | Switch, Rocker (white) |
|
- | |||||
| 4 | 98006063 | Panel, Backguard (white) |
|
- | |||||
| 5 | 6610258 | Cntrl-elec (white) |
|
- | |||||
| 8 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 12.62 | ||||
| 9 | 98008499 | Bracket, Timer (left) |
|
- | |||||
| 9 | 98008498 | Bracket, Timer (right) |
|
- |
