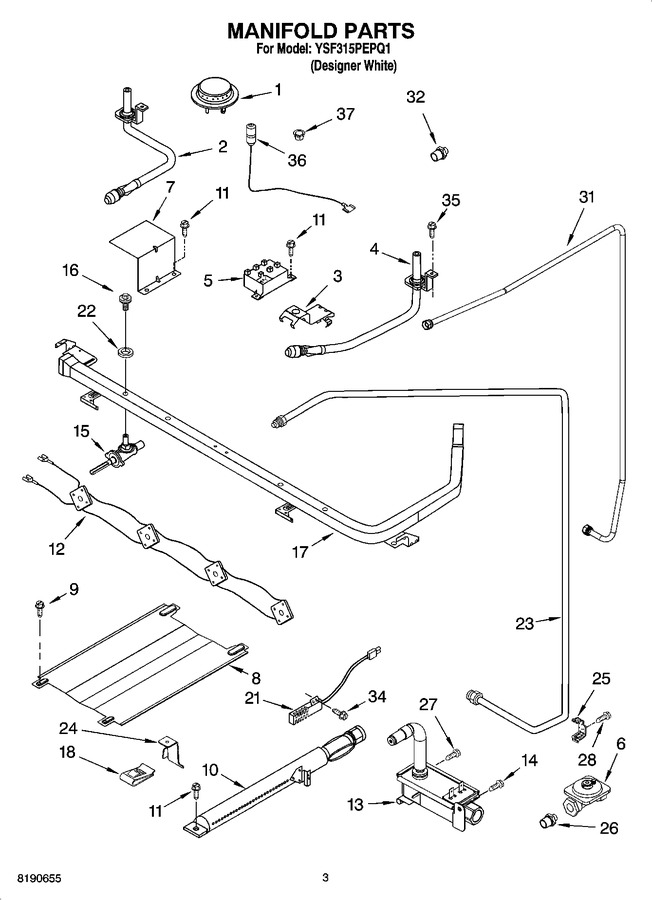

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98003939		Burner, Top (right)				$ 36.86
1	98008971		Burner, Top (left)		Appelez-nous	-
2	WP661243		Venturi, Front (2)		Appelez-nous	-
3	98005500		Brkt., Venturi (4)		Appelez-nous	-
4	WP6610244		Venturi, Rear (2)   (Replaces: 6610244)				$ 278.60
5	W11590249		Spark Module   (Replaces: 6610341)				$ 21.01
6	98007411		Regulator				$ 130.98
7	98007192		Cover, Module		Appelez-nous	-
8	98015099		Spreader, Flame				$ 243.31
9	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
10	WP98012138		Burner, Oven   (Replaces: 98012138)				$ 200.93
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	WPW10361492		Harness, Switch   (Replaces: 98014545)				$ 181.52
13	WP98014893		Valve, Oven   (Replaces: 98014893)				$ 141.73
14	W10837731		Screw   (Replaces: 98006633)				$ 7.07
15	98005626		Valve, Burner (4) (11,500 Btu)		Appelez-nous	-
15	98005574		Valve, Burner (4) (9,500 Btu)				$ 117.35
16	W11428245		Bolt, Valve Mtg   (Replaces: 98005521)		Appelez-nous	-
17	98013574		Pipe, Manifold		Appelez-nous	-
18	98009179		U-nut				$ 12.02
21	W10918546		Igniter, Oven (oven Pilot)   (Replaces: 98005652)			Immediately	$ 55.40
22	98007132		Washer, Valve (4)		Appelez-nous	-
23	98007428		Tubing (regltr To Oven Valve)		Appelez-nous	-
24	98013314		Locator, Burner		Appelez-nous	-
25	98007410		Bracket, Regulator		Appelez-nous	-
26	98007431		Fitting 3/8to9/16				$ 110.58
27	98013634		Screw		Appelez-nous	-
28	1180823		Screw		Appelez-nous	-
31	98007429		Tubing, Inlet		Appelez-nous	-
32	98007430		Fitting 1/4to9/16		Appelez-nous	-
34	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
35	W10837674		Screw   (Replaces: 98004484)				$ 6.90
36	WPW10209657		Igniter, Top (lf)   (Replaces: 98014521)				$ 48.56
36	WPW10209656		Igniter, Top (rf)   (Replaces: 98014514)			Immediately	$ 73.07
36	WPW10209656		Igniter, Top (rr)   (Replaces: 98014515)			Immediately	$ 73.07
36	WPW10209657		Igniter, Top (lr)   (Replaces: 98014522)				$ 48.56
37	98013677		Natural Spud Kit (for Use With Natural Gas)		Appelez-nous	-
37	WPW10278150		Clip, Igniter   (Replaces: 98007187)				$ 40.61
37	98013676		Lp Spud Kit (for Use With Lp)				$ 49.17
