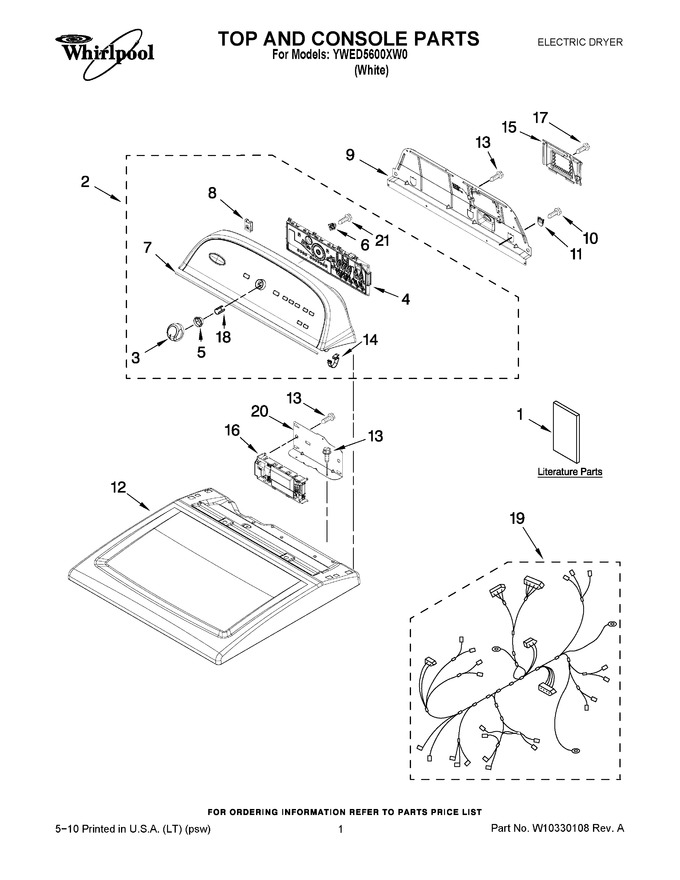

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096984 | Installation Instructions |
|
- | |||||
| 1 | W10096985 | Guide, Use & Care |
|
- | |||||
| 1 | W10097034 | Tech Sheet |
|
- | |||||
| 2 | WPW10269610 | Console Assembly (complete) (Replaces: W10269610) |
|
$ 419.02 | |||||
| 3 | WPW10251392 | Knob Assembly (Replaces: W10251392) |
|
$ 59.55 | |||||
| 4 | W10269625 | User Interface Assembly |
|
$ 262.26 | |||||
| 5 | W10325119 | Spacer, Knob |
|
- | |||||
| 6 | W10274524 | Tensioner Fascia |
|
- | |||||
| 7 | W10280079 | Seal, Console |
|
- | |||||
| 8 | W11213336 | Nut, 8-18 U-type (Replaces: W10298336) |
|
$ 8.13 | |||||
| 9 | W10096969 | Panel, Rear |
|
$ 197.80 | |||||
| 10 | WP693995 | Screw, 8-18 X 5/16 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | W10279552 | Plug-upper Rear Panel |
|
- | |||||
| 12 | W11641121 | Top (Replaces: W10260246) |
|
Immediately | $ 215.10 | ||||
| 13 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 17.40 | ||||
| 15 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 134.77 | |||||
| 16 | WPW10317636 | Ccu-control (Replaces: W10259285) |
|
Immediately | $ 379.85 | ||||
| 17 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 | ||||
| 18 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 19 | W10253984 | Harness, Electric |
|
$ 108.06 | |||||
| 20 | W10271580 | Bracket, Motor Control |
|
- | |||||
| 21 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 8.18 |
