SELECT A DIAGRAM

01 - Cover

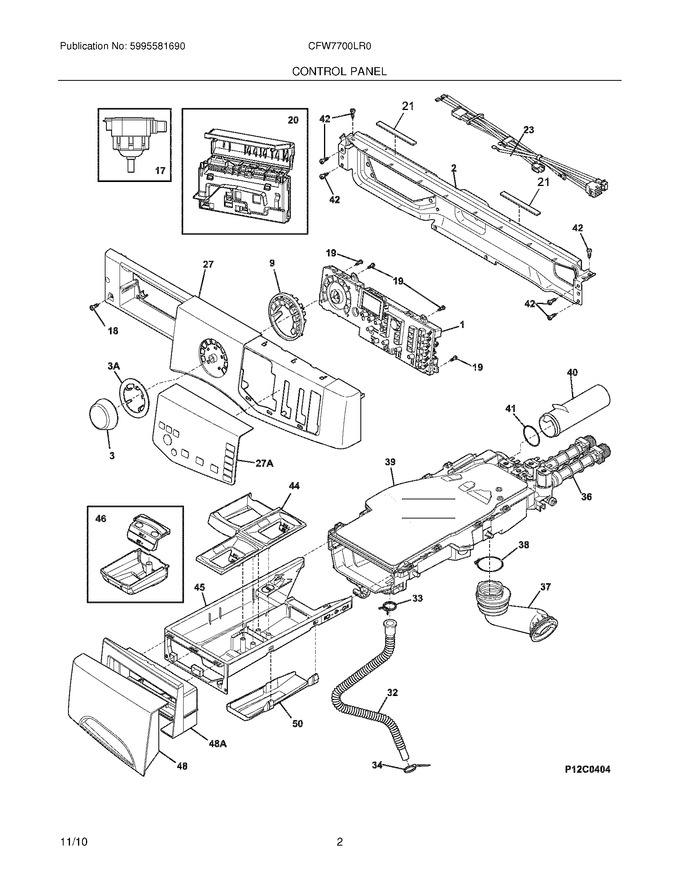

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134887400		Bracket,control Panel ,mounting				$ 92.61
3	137286500		Knob,control				$ 79.28
9	137286600		Pipe,cycle Light				$ 50.98
18	131302800		Screw,10-16ab X 0.375			Immediately	$ 26.58
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
21	134407900		Dampener,vibration				$ 17.01
27	137300240		Panel,control Console ,red ,decorated				$ 464.26
32	134586500		Hose,disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie,5.60 Inch   (Replaces: 5303321209)				$ 10.63
37	134372300		Hose,disp-to-tub				$ 58.32
38	134372400		Clamp,tub Hose				$ 64.49
39	134964010		Housing,dispenser ,w/valve,cover				$ 185.22
40	134372100		Tube,disp-to-overflo				$ 50.87
41	134372200		O-ring,overflow Tube				$ 13.74
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
44	134638310		Drawer Cover,with Graphics				$ 29.66
45	5304505336		Drawer,dispenser   (Replaces: 134638200)			Immediately	$ 59.57
46	137143800		Cup,dispenser ,liquid				$ 27.47
48	137393540		Handle,drawer ,dispenser		Appelez-nous	-
50	134638400		Conveyor,dispenser ,lower				$ 22.64
27A	137310040		Panel,diaplay ,red ,decorated		Appelez-nous	-
3A	137296900		Lens,cycle Indicator				$ 21.89
48A	137286000		Frame,dispenser ,drawer				$ 45.31
F1	137260800		Control Board,printed Circuit ,with Housing				$ 345.14
F17	134762010		Switch,pressure				$ 42.64
F20	134958213		Control Assembly,main Electronic   (Replaces: 134958200)				$ 292.79
F23	137288700		Wiring Harness,main				$ 185.54
F36	134637810		Valve Water,dispenser ,no Thermister			Immediately	$ 180.15
NI	134371300		Gasket,disp-to-valve			Immediately	$ 51.04
NI	134178901		Screw,8-18ab X 0.455				$ 14.89

    View Diagram in Separate Window       Print Part List
