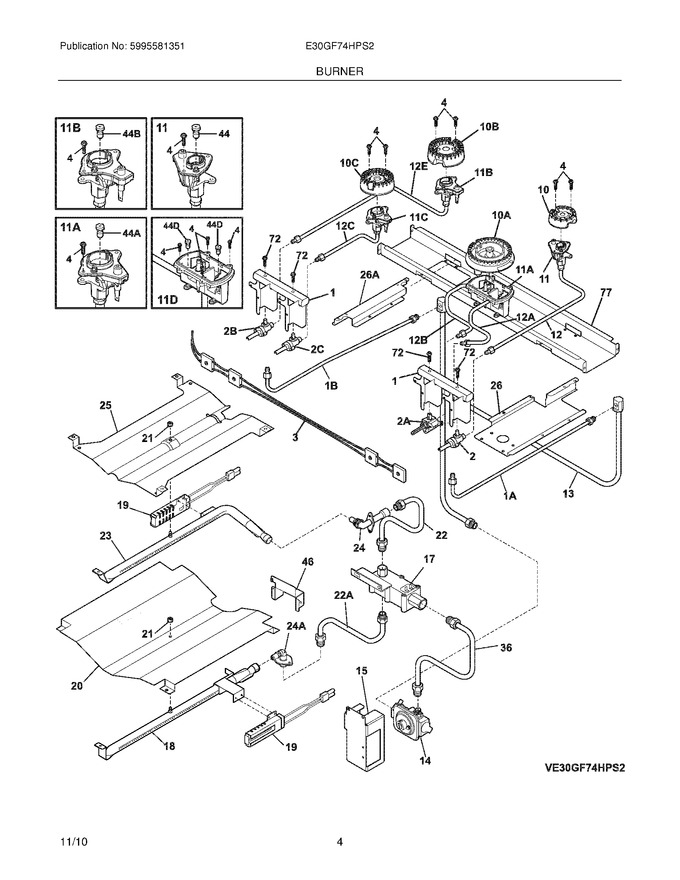

05 - Burner


07 - Body


09 - Main Top


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw,hex Wash ,6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
15	318376120		Bracket,regulator		Appelez-nous	-
20	318290400		Baffle,bake Burner				$ 120.65
21	5303323000		Nut,keps		Appelez-nous	-
25	316401301		Baffle,broil Burner				$ 173.57
26	318363803		Bracket,channel Mtg		Appelez-nous	-
46	318536250		Protector,air Shutter		Appelez-nous	-
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318355503		Bracket,channel Mtg.		Appelez-nous	-
1A	318305403		Tube,manifold ,interconnect				$ 93.87
1B	318305404		Tube,manifold ,interconnect				$ 70.16
26A	318363903		Bracket,channel Mtg.		Appelez-nous	-
F1	318357801		Manifold,(2)				$ 88.63
F10	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10A	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F10B	316438600		Burner,sealed ,14k			Immediately	$ 79.80
F10D	316525401		Burner,sealed ,dual ,18k				$ 187.54
F11	316540800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder				$ 11.20
F11A	316540700		Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder				$ 11.15
F11B	316543204		Ignitor/orifice Assy.,top Burner ,14k				$ 12.33
F11D	316525103		Ignitor/orifice Assy.,top Burner ,18k ,w/holder				$ 219.39
F12	318366727		Tube,burner ,rh Rear ,5k		Appelez-nous	-
F12A	318366731		Tube,18k Burner ,rh Front				$ 29.98
F12B	318366732		Tube,18k Burner ,rh Front				$ 29.48
F12C	318366733		Tube,9.5k Burner ,lh Front		Appelez-nous	-
F12E	318366728		Tube,14k Burner ,lh Rear		Appelez-nous	-
F13	318360601		Tube,regulator ,to Manifold				$ 157.35
F14	316082907		Regulator-pressure		Appelez-nous	-
F17	5303210798		Valve-safety			Immediately	$ 587.56
F18	318292210		Burner,bake ,18000		Appelez-nous	-
F19	5303935066		Ignitor,oven Burner   (Replaces: 318177710)			Immediately	$ 59.58
F2	316520700		Valve,burner ,5k				$ 126.87
F22	318305212		Tube,broil Supply		Appelez-nous	-
F22A	318305211		Tube,bake Supply		Appelez-nous	-
F23	318292300		Burner,broil ,14000				$ 99.75
F24	316409703		Elbow,mixer				$ 138.70
F24A	318347219		Mixer Elbow,bake		Appelez-nous	-
F2A	316574900		Valve,top Burner ,18k Dual				$ 242.16
F2B	316520703		Valve,burner ,14.2k				$ 146.01
F2C	316520701		Valve,burner ,9.5k				$ 131.84
F3	318232634		Wiring Harness,w/igntr Switch				$ 168.66
F36	318177812		Tubing,oven Supply		Appelez-nous	-
F44	316527504		Orifice,top Burner ,5k				$ 22.68
F44A	316527500		Orifice,top Burner ,9.5k				$ 21.40
F44B	316527511		Orifice,top Burner ,14k				$ 19.85
F44D	316523512		Orifice,top Burner ,18k		Appelez-nous	-
F44D	316523509		Orifice,top Burner ,center ,18k				$ 20.69
FNI	318199782		Wiring Harness,ignitor		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318186926		Lp Conversion Kit				$ 135.29
NI	318064857		Instruction Sheet,lp Conversion		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
