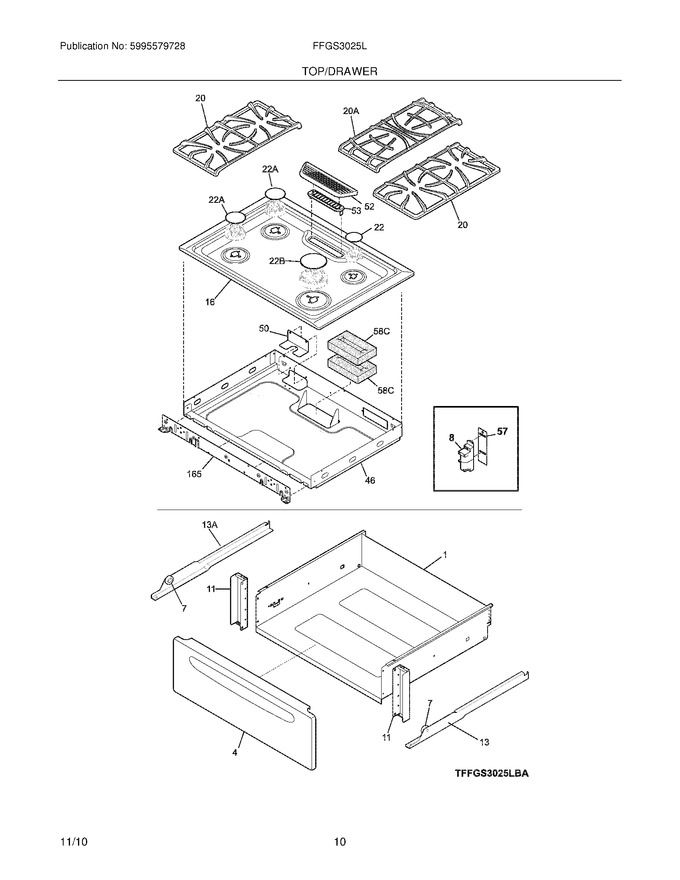

09 - Top/drawer


11 - Door


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298906		Panel,drawer ,white ,front				$ 145.30
7	318332200		Roller,nylon		Appelez-nous	-
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318569261		Maintop Assembly,white		Appelez-nous	-
20	318560260		Grate,burner ,black ,(2)		Appelez-nous	-
22	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
46	318291400		Box,burner		Appelez-nous	-
50	318328500		Cover,burner Box		Appelez-nous	-
52	318291100		Cover,flue ,white ,outer		Appelez-nous	-
53	318308303		Cover,flue ,black				$ 112.19
57	318295611		Panel,service				$ 15.12
165	318227504		Plate,mounting		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
20A	318560470		Grate,black ,center				$ 290.46
22A	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22B	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 46.01
58C	318594402		Insulation,flue   (Replaces: 318285099)				$ 245.64
F8	5304505695		Module,spark   (Replaces: 316135702)			Immediately	$ 68.16
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
