SELECT A DIAGRAM

01 - Cover


03 - Backguard

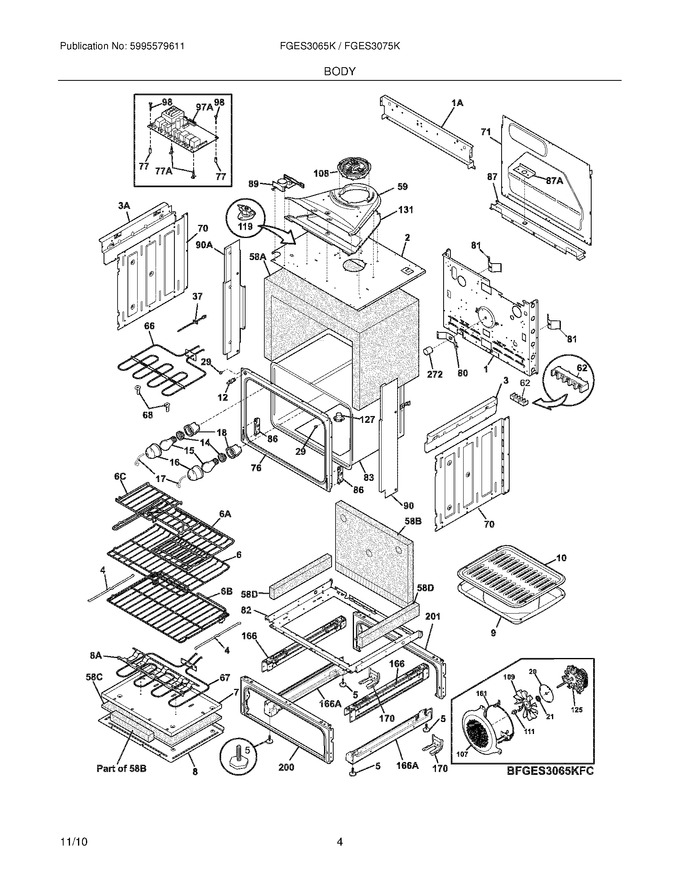

05 - Body


07 - Top/drawer


09 - Door


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318570500		Panel,insualtion ,top				$ 86.89
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
4	318927600		Support,auto Rack ,(2)				$ 23.25
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318922301		Rack,oven			Immediately	$ 163.05
7	318297303		Box,bake Element				$ 125.84
8	318359500		Panel,service				$ 140.09
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
29	316517600		Spacer,oven Door				$ 12.05
59	318570602		Duct,cooling Fan		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258770		Shield,insulation ,lower				$ 26.46
83	318261450		Liner,oven Assy		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260627		Bracket,cable Mtg.		Appelez-nous	-
90	5304511889		Panel,filler ,black ,rh   (Replaces: 318296904)				$ 74.42
98	5303297477		Screw,6-20 X 1 1/4				$ 15.17
107	318219405		Cover,fan				$ 82.69
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318317105		Adapter Assembly,vent Tube ,w/converter				$ 7.65
131	318574805		Bottom,cooling Duct		Appelez-nous	-
166	318298410		Bracket,base Support ,(2)				$ 75.83
170	318335500		Anti-tip & Accessories				$ 46.94
200	318298226		Frame,drawer ,front				$ 107.00
201	318298233		Frame,drawer ,black   (Replaces: 318298230)				$ 45.36
272	318249409		Tube,protector		Appelez-nous	-
1A	318225110		Panel,main Back ,upper				$ 63.05
3A	318225211		Panel,bodyside ,upper Lh				$ 48.25
58A	318386113		Insulation,oven Wrapper		Appelez-nous	-
58B	318285079		Insulation,oven Back		Appelez-nous	-
58C	318294912		Insullation,bake Element				$ 97.17
58D	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
6A	318926803		Rack,half ,oven				$ 165.48
6B	318921600		Rack,oven ,auto				$ 181.81
6C	318929702		Insert,half Rack				$ 100.46
77A	316114100		Spacer				$ 60.96
87A	318111806		Plate,cord Set Mtg				$ 11.68
8A	318313601		Bracket,bake Element				$ 71.45
90A	5304511890		Panel,filler ,black ,lh   (Replaces: 318296905)				$ 81.14
F108	318575600		Motor,cooling Fan			Immediately	$ 272.25
F119	318578506		Thermostat,cooling Fan ,105 Deg.			Immediately	$ 58.19
F125	5304463302		Motor,fan   (Replaces: 318398201)			Immediately	$ 259.95
F161	318255504		Element,convection ,350 W				$ 97.07
F166	5304511884		Bracket,base Support ,lower ,(2)   (Replaces: 318298405)				$ 65.98
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255807		Element,broil ,4000w   (Replaces: 318255800)				$ 323.19
F67	318254916		Element,bake ,2500w ,8 Pass   (Replaces: 318254911)			Immediately	$ 204.47
F89	318261229		Motor,latch Assy   (Replaces: 318261221)			Immediately	$ 93.62
F97A	316442112		Board,power ,relay			Immediately	$ 328.64
FNI	318582605		Harness,wiring ,main				$ 250.27
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	318579001		Bracket,wire				$ 11.08
NI	318264200		Plate,grounding Strap				$ 23.51
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	318531701		Spacer,(2)				$ 12.05
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304440988		Screw,10-16 X 3/4		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	3051050		Screw-shoulder				$ 12.29
NI	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
