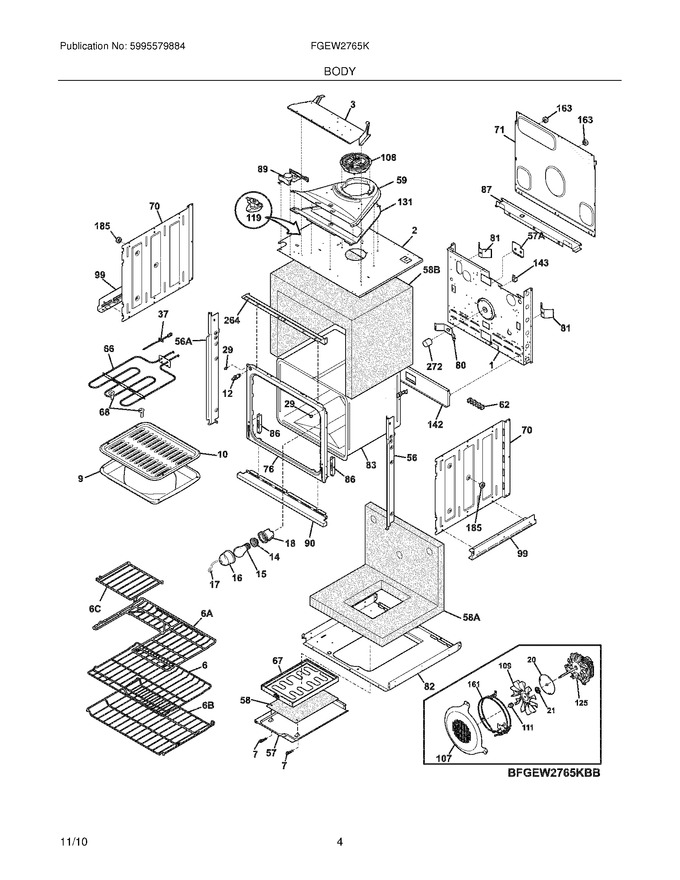

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259213 | Back,main |
|
- | |||||
| 2 | 318570510 | Panel,insualtion ,top |
|
- | |||||
| 3 | 318577700 | Panel,mounting |
|
- | |||||
| 6 | 318922301 | Rack,oven (Replaces: 318922300) |
|
Immediately | $ 163.05 | ||||
| 7 | 318368300 | Pin,locking ,(2) |
|
$ 9.93 | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Access0ry |
|
$ 68.85 | |||||
| 12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 316538904 | Lamp,oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 318406100) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 18 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 20 | 318389400 | Plate,retainer |
|
$ 16.21 | |||||
| 21 | 318389000 | Seal,ring |
|
$ 22.75 | |||||
| 29 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 56 | 318903747 | Trim,side ,black ,rh |
|
$ 112.77 | |||||
| 57 | 318902704 | Panel,service (Replaces: 318902701) |
|
- | |||||
| 58 | 318330503 | Insulation,service Panel |
|
$ 43.05 | |||||
| 59 | 318570602 | Duct,cooling Fan |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 68 | 5304403015 | Support,hanger ,broil Element |
|
$ 35.04 | |||||
| 70 | 318259105 | Shield,insulation ,sides ,(2) |
|
$ 91.51 | |||||
| 71 | 318260001 | Panel,rear Box |
|
- | |||||
| 76 | 318056224 | Front,oven |
|
- | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258774 | Shield,insulation ,lower |
|
- | |||||
| 83 | 318261512 | Liner,oven Assy |
|
$ 204.70 | |||||
| 86 | 318561100 | Receptacle,hinge ,(2) |
|
$ 21.23 | |||||
| 87 | 318260623 | Bracket,cable Mtg. |
|
- | |||||
| 90 | 318259711 | Trim,oven Front ,black ,bottom |
|
$ 64.84 | |||||
| 99 | 318256201 | Bracket,side ,bottom ,(2) |
|
$ 56.70 | |||||
| 107 | 318219405 | Cover,fan |
|
$ 82.69 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 131 | 318574805 | Bottom,cooling Duct |
|
- | |||||
| 142 | 318123910 | Deflector |
|
- | |||||
| 143 | 318172904 | Support,wire |
|
- | |||||
| 163 | 318531703 | Spacer |
|
- | |||||
| 185 | 318531800 | Spacer,oven Shield ,(2) |
|
$ 12.76 | |||||
| 264 | 318257713 | Trim,oven ,black ,front |
|
- | |||||
| 272 | 318249409 | Tube,protector |
|
- | |||||
| 56A | 318903748 | Trim,side ,black ,lh |
|
$ 80.01 | |||||
| 57A | 318402800 | Plate,cover |
|
$ 9.23 | |||||
| 58A | 318330510 | Insulation,back & Bottom ,oven |
|
- | |||||
| 58B | 318386114 | Insulation,oven Wrapper |
|
- | |||||
| 6A | 318926804 | Rack,half ,oven |
|
- | |||||
| 6B | 318919800 | Rack,oven |
|
$ 168.26 | |||||
| 6C | 318929703 | Insert,half Rack |
|
- | |||||
| F108 | 318575603 | Motor,cooling Fan |
|
Immediately | $ 184.19 | ||||
| F119 | 318578506 | Thermostat,cooling Fan ,105 Deg. |
|
Immediately | $ 58.19 | ||||
| F125 | 5304463302 | Motor,fan (Replaces: 318398201) |
|
Immediately | $ 259.95 | ||||
| F161 | 318255504 | Element,convection ,350 W |
|
$ 97.07 | |||||
| F37 | 5304504897 | Sensor,oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| F66 | 318255606 | Element,broil ,3400w (Replaces: 318255601) |
|
Immediately | $ 197.39 | ||||
| F67 | 318902502 | Element,hidden Bake ,1450w |
|
Immediately | $ 205.21 | ||||
| F89 | 318261229 | Motor,latch Assy (Replaces: 318261221) |
|
Immediately | $ 93.62 | ||||
| FNI | 318231870 | Wiring Harness,bake Element |
|
$ 83.42 | |||||
| FNI | 318572714 | Harness,wiring ,latch |
|
- | |||||
| FNI | 5304506983 | Box & Wires Assy (Replaces: 318394441) |
|
$ 133.47 | |||||
| FNI | 318572721 | Harness,wiring ,main |
|
- | |||||
| NI | 318268099 | Insulation,oven Light |
|
- | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 5304455945 | Spacer,pad |
|
- | |||||
| NI | 5303324184 | Screw,8-18 X 5/16 ,black |
|
Immediately | $ 14.18 | ||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(4) |
|
- | |||||
| NI | 5304461333 | Screw,10-32 X 17/32 |
|
Immediately | $ 13.46 | ||||
| NI | 5303323136 | Screw-ground |
|
- | |||||
| NI | 5304470882 | ยท Screw,anti-tip ,8 - 5/8 ,black ,(2) |
|
$ 13.46 | |||||
| NI | 5304400192 | Retainer,wiring |
|
- | |||||
| NI | 318165800 | Spacer |
|
$ 17.72 | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 318368501 | Seal,housing ,flat Washer |
|
- | |||||
| NI | 318579001 | Bracket,wire |
|
$ 11.08 |
