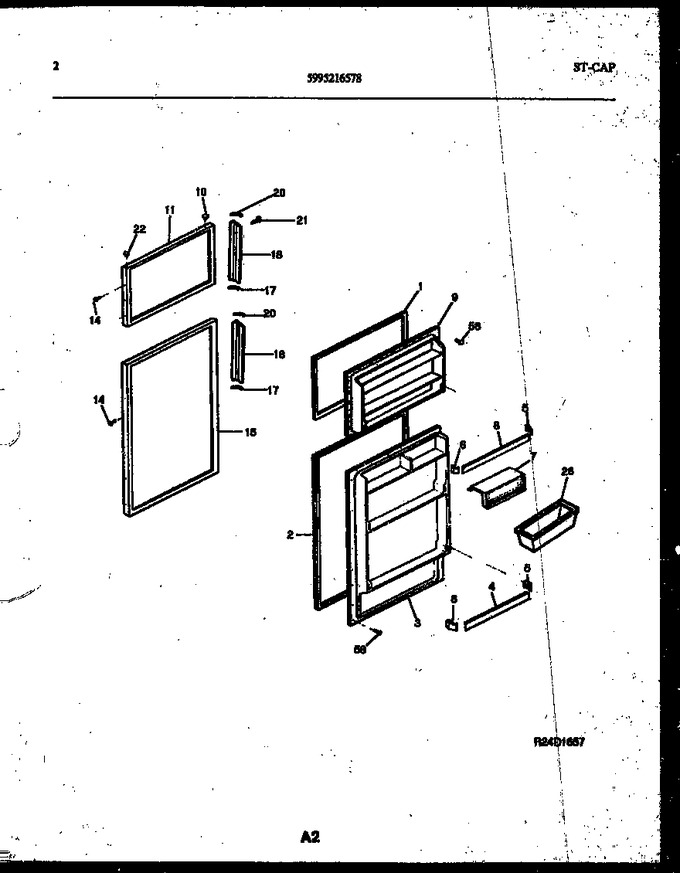

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206462 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 3206466 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303207346 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281481 | Rack-door, (2) |
|
$ 165.80 | |||||
| 5 | 5303207230 | Support-door Rack, Rh, (4) |
|
Immediately | $ 17.21 | ||||
| 6 | 5303207229 | Support-door Rack, Lh, (4) |
|
$ 17.59 | |||||
| 7 | 5303207233 | Door-dairy |
|
- | |||||
| 8 | 5303281482 | Rack-door, (2) |
|
- | |||||
| 9 | 5303207343 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917061 | Panel-frzr Door, Almond |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917063 | Panel-refr Door, Almond |
|
- | |||||
| 17 | 5308010238 | Handle End |
|
- | |||||
| 18 | 5308009875 | Handle-door, Teakwood Vinyl, Refr/frzr, (2) |
|
- | |||||
| 20 | 5308010239 | Handle End |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *58972 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- |
