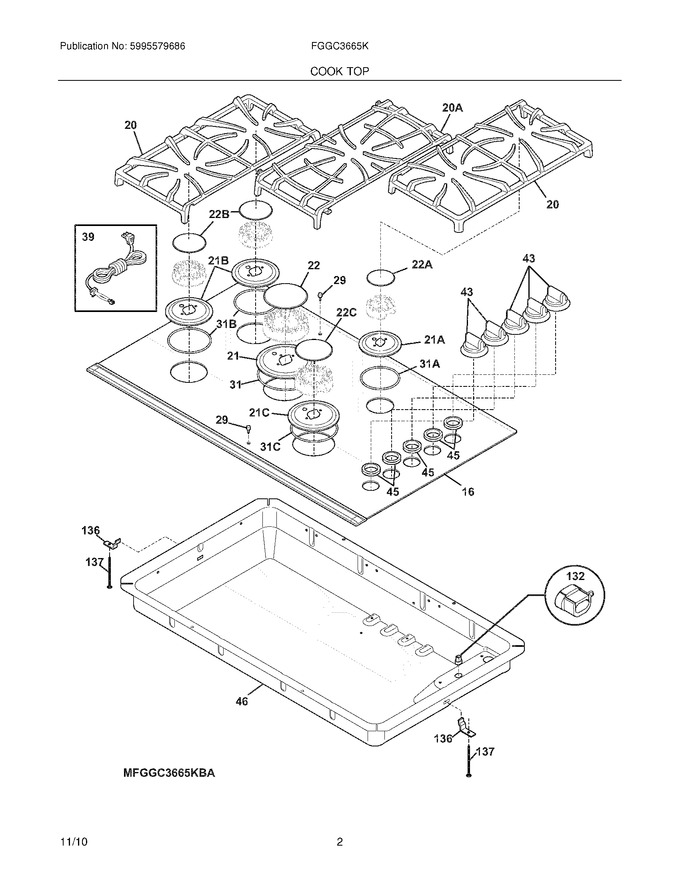

03 - Maintop


05 - Burner


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318574612		Maintop Assembly,glass/steel ,white ,w/frnt Trim		Appelez-nous	-
20	318560250		Grate,burner ,black ,(2)		Appelez-nous	-
21	318293204		Skirt,17k Burner ,black		Appelez-nous	-
22	5304508468		Cap,burner ,17k ,black   (Replaces: 316262104)				$ 49.45
29	318147432		Locator,grate ,rubber ,(4)		Appelez-nous	-
31	316242004		Seal,16k/17k Burner				$ 18.95
39	318144006		Cord,service		Appelez-nous	-
43	316545104		Knob,top Valve ,white		Appelez-nous	-
45	318146201		Bushing,black		Appelez-nous	-
46	318279007		Box,burner		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318560450		Grate,black ,center		Appelez-nous	-
21A	318293107		Skirt,5k Burner ,black				$ 60.67
21B	318293007		Skirt,9.5k Burner ,black				$ 65.22
21C	318292907		Skirt,12k Burner ,black		Appelez-nous	-
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22C	316261904		Cap,12k Burner ,black				$ 46.36
31A	316242002		Seal,5k/9.5k Burner				$ 25.02
31B	316242001		Seal,9.5k/12k Burner				$ 23.06
31C	316242000		Seal,12k/14k Burner				$ 73.71
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303323171		Tape,aluminum ,2``		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
