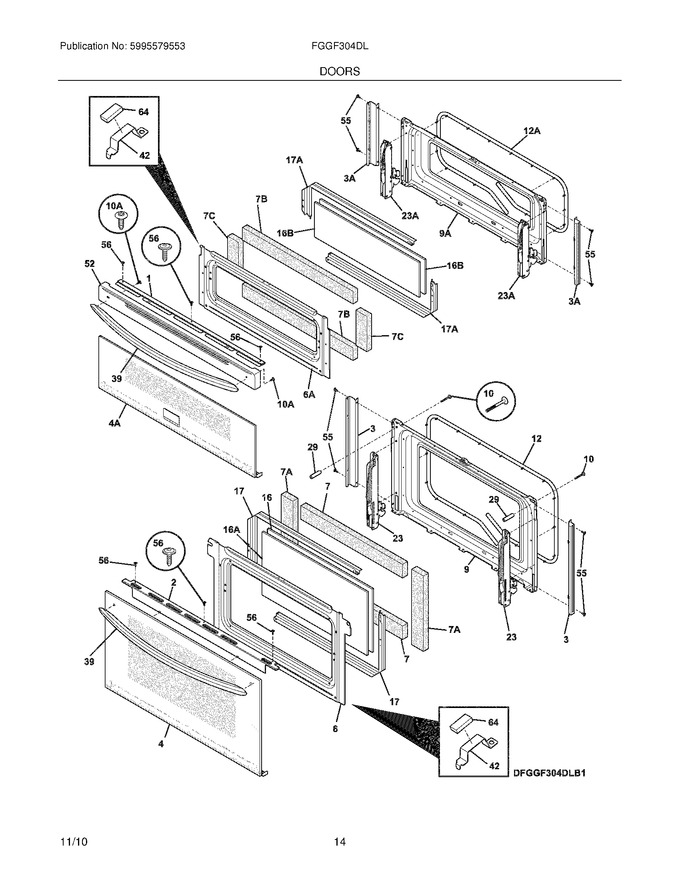

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318562703		Trim,top ,black ,upper Door		Appelez-nous	-
2	318260227		Trim,oven Door ,black ,upper				$ 55.70
3	318301432		Trim,lower Door ,black				$ 38.96
4	318304175		Door Assembly,glass ,black ,w/trim		Appelez-nous	-
6	318260525		Baffle,door ,lower		Appelez-nous	-
7	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
9	318259667		Liner,oven Door ,lower		Appelez-nous	-
10	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
12	318053154		Seal,oven Door ,lower				$ 93.87
16	318212215		Glass,lower Oven ,heat Barrier ,hbi		Appelez-nous	-
17	318264721		Spacer,glass ,lower ,(2)		Appelez-nous	-
23	318567120		Hinge,door ,lower Oven ,(2)				$ 96.65
29	318014405		Spacer,door		Appelez-nous	-
39	316544500		Handle,door ,black				$ 122.10
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318304210		Trim,door ,black ,upper				$ 510.34
55	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
56	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
64	318165800		Spacer				$ 17.72
10A	5304453593		Screw,handle Mtg.				$ 10.53
12A	318053152		Seal,oven Door ,upper				$ 89.57
16A	318212216		Glass,lower Oven ,heat Barrier ,hbii				$ 160.76
16B	318212212		Glass,upper Oven ,heat Barrier ,(2) ,hbii				$ 249.80
17A	318264720		Spacer,glass ,upper ,(2)		Appelez-nous	-
23A	318567130		Hinge,door ,upper Oven ,(2)				$ 92.93
3A	318301422		Trim,upper Door ,black		Appelez-nous	-
4A	318934201		Glass Assembly,door ,black ,upper ,w/trim & Badge		Appelez-nous	-
6A	318260524		Baffle,door ,upper		Appelez-nous	-
7A	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
7B	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
7C	318372007		Insulation,6.625 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
9A	318259676		Liner,oven Door ,upper		Appelez-nous	-
NI	316433603		Label,anti-tip				$ 3.55
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
