SELECT A DIAGRAM
01 - Body

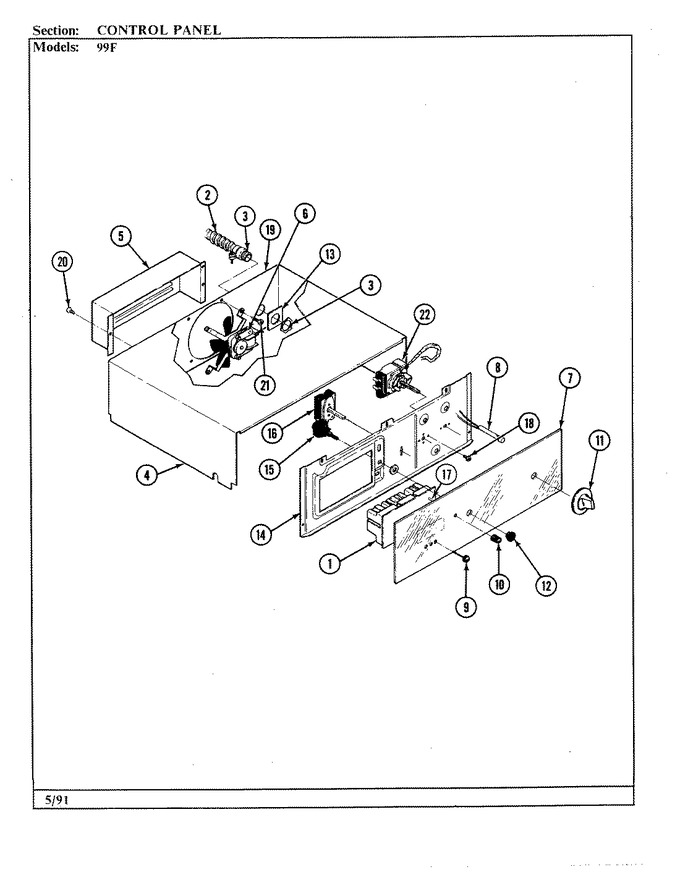

02 - Control Panel
03 - Door
04 - Door
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P197-60 | Clock | 21 |
|
- | ||||
| 1 | 7601P123-60 | Clock | 01 |
|
- | ||||
| 2 | 5700A289-60 | Conduit, Flexible | 01 |
|
- | ||||
| 3 | 7417P017-60 | Connector, Cable | 01 |
|
$ 9.81 | ||||
| 4 | 4005F150-51 | Cover, Wire | 01 |
|
- | ||||
| 5 | 4005F262-51 | Cover, Fan | 01 |
|
- | ||||
| 6 | 8008P004-60 | Grommet | 01 |
|
- | ||||
| 6 | 7427P006-60 | Fan Assembly | 01 |
|
- | ||||
| 7 | 7912P070-60 | Glass, Control Panel (wht) | 01 |
|
- | ||||
| 8 | 7414P004-60 | Insulator, Terminal | 01 |
|
- | ||||
| 8 | 5700A236-60 | Light, Indicator | 01 |
|
- | ||||
| 9 | 7711P420-60 | Knob, Clock (button-wht) | 01 |
|
- | ||||
| 10 | 7711P419-60 | Knob, Clock (wht) | 01 |
|
- | ||||
| 11 | 7739P011-60 | Knob, Selector Switc | 01 |
|
- | ||||
| 12 | 7214P023-60 | Sleeve, Switch (wht) | 01 |
|
- | ||||
| 13 | 3605F131-51 | Plate, Reinforcement | 01 |
|
- | ||||
| 14 | 3605F170-80 | Plate, Switch | 01 |
|
- | ||||
| 15 | 7403P204-60 | Switch, Push (wht) | 01 |
|
- | ||||
| 16 | 7403P023-60 | Switch, Selector | 01 |
|
- | ||||
| 17 | 8312P017-60 | Shaft, Clock | 01 |
|
- | ||||
| 17 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 17 | 7003P033-60 | Insulation Thermostat | 01 |
|
- | ||||
| 18 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 19 | 3605F164-51 | Plate, Conduit | 01 |
|
- | ||||
| 20 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 21 | 7101P079-60 | Screw | 01 |
|
- | ||||
| 22 | 7404P039-60 | Thermostat, Upper | 01 |
|
- | ||||
| 22 | 7101P239-60 | Screw | 01 |
|
- |
