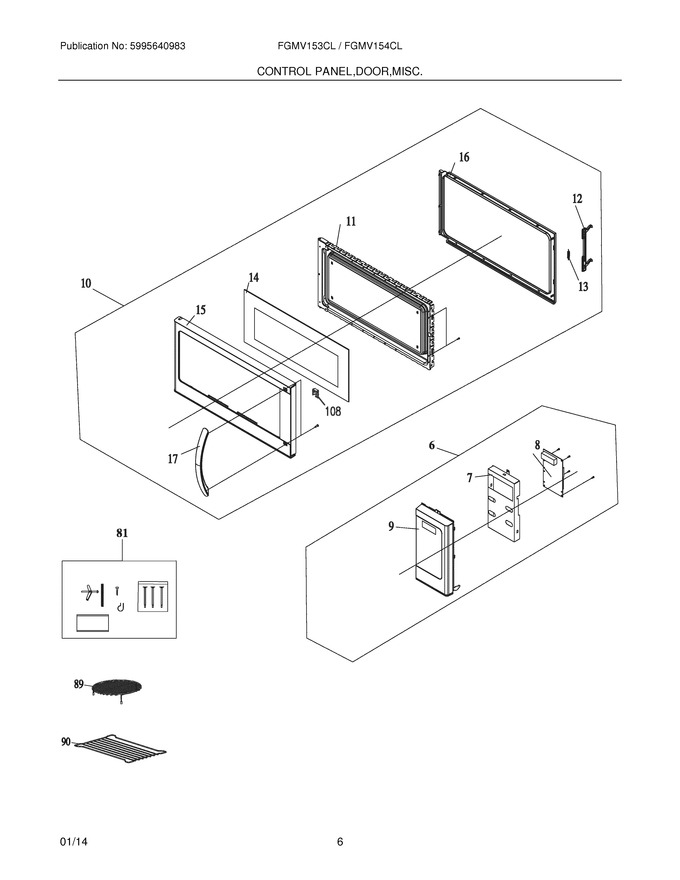

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	5304464065		Panel,control Mount ,bracket				$ 68.04
9	5304481492		Frame,control Panel ,black		Appelez-nous	-
10	5304481495		Door Assembly,black		Appelez-nous	-
11	5304525104		Panel,inner Door ,black   (Replaces: 5304478902)				$ 182.22
13	5304521953		Spring,door Latch   (Replaces: 5304464069)				$ 7.23
14	5304481497		Panel,glass ,black ,outer Door		Appelez-nous	-
15	5304481500		Panel,outer Door ,black		Appelez-nous	-
16	5304509640		Choke Cover,inner Door   (Replaces: 5304464071)				$ 50.61
17	5304481503		Handle Assembly,door ,black				$ 128.71
81	5304503192		Mounting Kit,with Templates   (Replaces: 5304492620)				$ 114.26
89	5304478926		Rack,round ,wire ,3-leg				$ 127.58
90	5304478927		Shelf,wire				$ 85.05
108	5304481521		Cover,screw ,black ,inner Door				$ 38.16
F12	4056021605		Latch,door   (Replaces: 5304477389)			Immediately	$ 3.69
F6	5304481488		Control Assembly,black		Appelez-nous	-
F8	5304481490		Control Board,printed Circuit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
