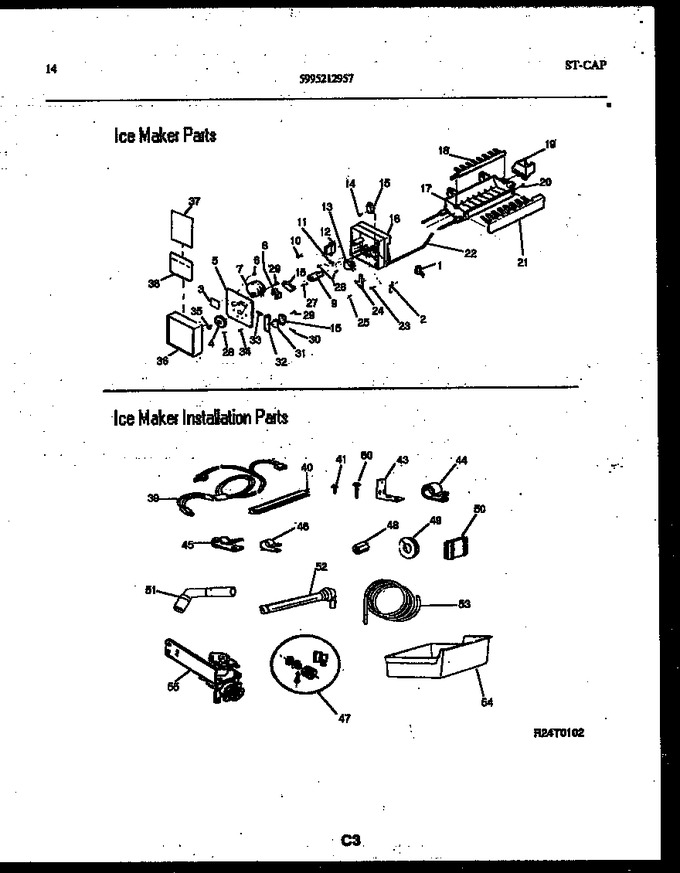

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 38 | 5303207445 | Envelope-data Sheet |
|
- | |||||
| 39 | 3206358 | Wiring Harness,ice Maker |
|
- | |||||
| 40 | 5305877995 | Sealing Strip |
|
Immediately | $ 55.29 | ||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 44 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 46 | 5303001193 | Clamp-inlet Tube, Metal |
|
$ 16.30 | |||||
| 47 | 3206360 | Adapter-water Supply |
|
$ 94.66 | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 49 | 5303001147 | Plug-harness Hole, (2) |
|
$ 22.30 | |||||
| 50 | 5303001147 | Plug-harness Hole, (2) |
|
$ 22.30 | |||||
| 51 | 5308000239 | Extension-inlet Tube, S X S & Sd Only |
|
- | |||||
| 52 | 5308010269 | Tube-water Inlet |
|
- | |||||
| 53 | 3206276 | Tube - Valve To Im, Plastic |
|
- | |||||
| 54 | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| 55 | 3206356 | Valve-solenoid/water |
|
- | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| *55563 | 65801LF | Saddle-valve Kit (Replaces: 5308000247) |
|
Immediately | $ 8.27 | ||||
| 55A | 5303015102 | Cap-water Valve (non-illustrated) |
|
- |
