SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

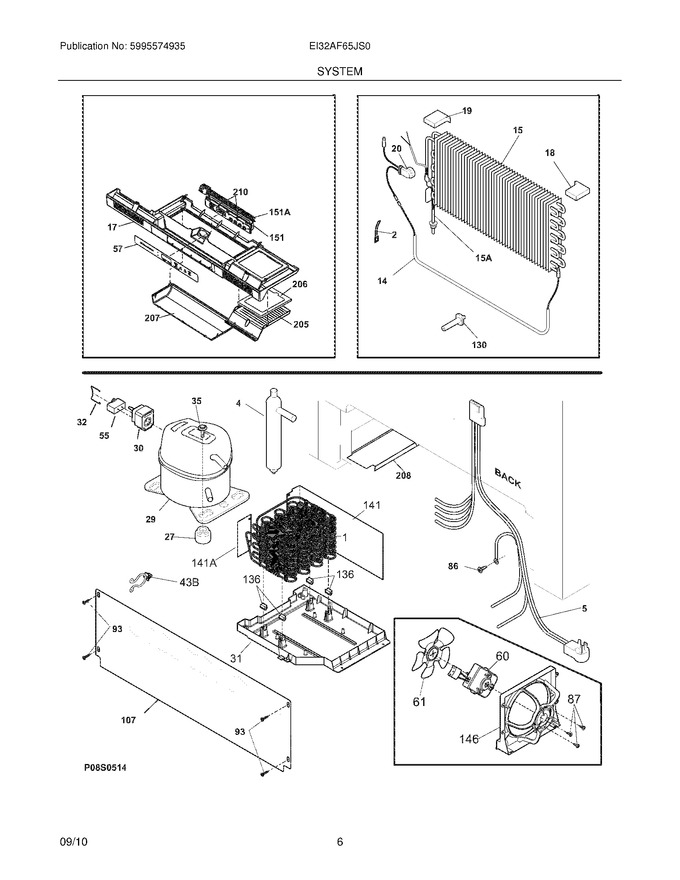

07 - System


09 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216987501)			Immediately	$ 31.67
17	297269000		Box-control				$ 140.12
18	297078701		Insulator-evap,styrofoam ,rh				$ 3.62
19	297078801		Insulator-evap,styrofoam ,lh				$ 3.62
20	297216600		Thermostat,defrost			Immediately	$ 27.52
27	297293300		Grommet,compressor		Appelez-nous	-
30	216954218		Controller				$ 91.01
31	297165800		Pan-drain				$ 89.15
32	216954300		Clip,controller				$ 17.01
35	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
57	297269402		Overlay			Immediately	$ 73.00
60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
107	297165400		Shield,compressor ,compartment				$ 19.85
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
141	297164200		Divider,air Flow				$ 26.23
146	297164000		Shroud-fan Orfice				$ 76.97
205	297294302		Holder,air Filter		Appelez-nous	-
206	EAFCBF		Filter-air   (Replaces: 242047801)			Immediately	$ 27.64
207	297294501		Shield-light,white				$ 36.02
208	297355201		Guard-wire		Appelez-nous	-
210	216605301		Screw,ph No.3-24 X .25		Appelez-nous	-
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 91.82
43B	297315800		Clip,wire				$ 10.13
F1	297152200		Condenser,dynamic				$ 171.33
F14	216730700		Heater-defrost			Immediately	$ 116.44
F141	297194700		Divider,small ,air Flow		Appelez-nous	-
F146	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F151	297326503		Electronic Control,assy				$ 254.21
F151	808772801		Harness-jumper   (Replaces: 297327900)				$ 41.27
F29	5304478809		Compressor   (Replaces: 297223400)			Immediately	$ 584.96
F5	297325500		Harness-main				$ 189.43
FNI	297366805		Cord-power,flat   (Replaces: 297169901)				$ 68.68
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	297014702		Plug-suction Line				$ 9.41
NI	297110400		Thermistor			Immediately	$ 72.68
NI	241500305		Screw,no.8 ,18x.63   (Replaces: 297174300)				$ 3.03
NI	216502500		Sleeve,suction Line				$ 10.85

    View Diagram in Separate Window       Print Part List
