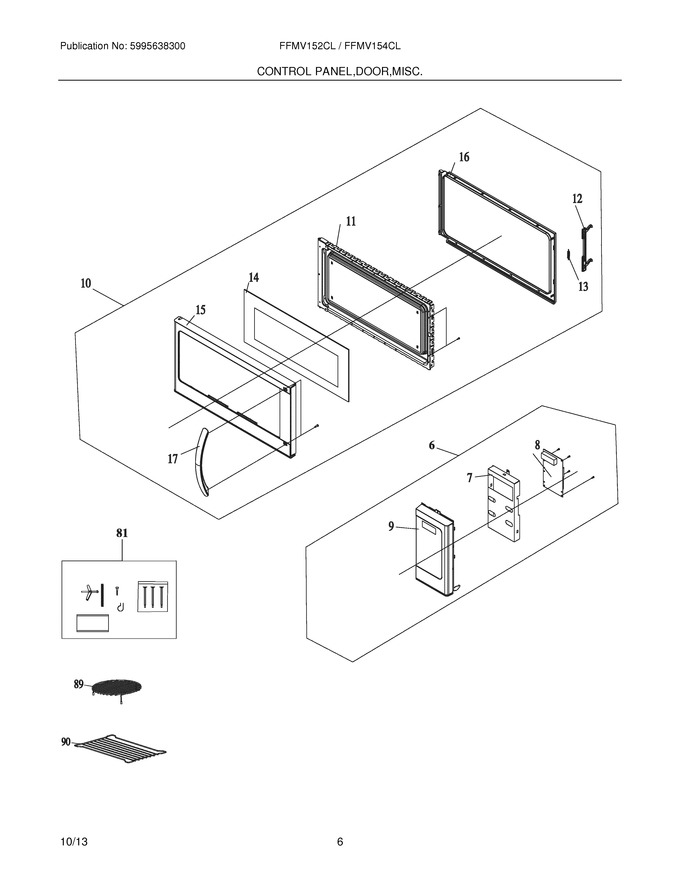

05 - Control Panel,door,miscellaneous


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	5304464065		Panel,control Mount ,bracket				$ 68.04
10	5304478901		Door Assembly,white		Appelez-nous	-
11	5304478903		Panel,inner Door ,white		Appelez-nous	-
13	5304521953		Spring,door Latch   (Replaces: 5304464069)				$ 7.23
14	5304464134		Panel,glass ,white ,outer Door		Appelez-nous	-
15	5304477395		Panel,outer Door ,white				$ 265.32
16	5304509640		Choke Cover,inner Door   (Replaces: 5304464071)				$ 50.61
17	5304537780		Handle Assembly,door ,white   (Replaces: 5304477399)			Immediately	$ 151.15
81	5304503192		Mounting Kit,with Templates   (Replaces: 5304492620)				$ 114.26
89	5304478926		Rack,round ,wire ,3-leg				$ 127.58
90	5304478927		Shelf,wire				$ 85.05
F12	4056021605		Latch,door   (Replaces: 5304477389)			Immediately	$ 3.69
F6	5304478894		Control Assembly,white		Appelez-nous	-
F8	5304478895		Control Board,printed Circuit				$ 262.15
F9	5304478898		Frame,control Panel ,white		Appelez-nous	-
