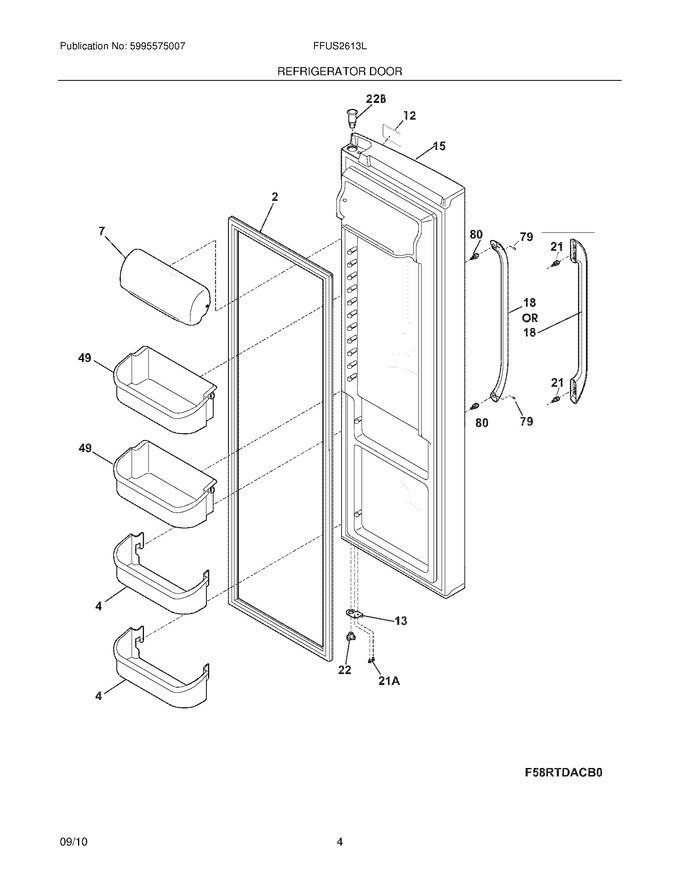

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Refrigerator Door Gasket, Grey, Magnetic			Immediately	$ 225.62
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	241942603		Door Stop,black ,ref				$ 20.56
15	242038844		Door-refr,black (smooth) ,complete Assy				$ 342.28
18	242059102		Handle-door,black				$ 88.69
21	241695904		Screw				$ 14.41
22	241990301		Bearing-hinge,gray				$ 7.09
49	240356401		Bin-door,gallon			Immediately	$ 85.64
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760404		Bearing,hinge ,top				$ 12.76
