Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241829401		Auger-ice				$ 265.78
3	241830201		Cam-drive				$ 36.02
4	241816801		Container-ice,bucket Only				$ 248.45
6	241829801		Drum-ice Disp				$ 114.83
7	241829702		Front-ice Container				$ 39.33
10	241829001		Bar-drive				$ 58.55
13	241829901		Gate				$ 28.25
17	241830601		Drive Blade				$ 69.88
20	241828901		Cover-motor		Appelez-nous	-
23	241829501		Plate-front				$ 87.56
26	241690602		Screw,cr Pan Hd ,10-16 X 0.500   (Replaces: 215503205)			Immediately	$ 10.63
33	241684802		Spacer   (Replaces: 241684801)				$ 9.10
34	241689802		Spacer   (Replaces: 241689801)				$ 8.34
41	241830001		Housing-crusher				$ 68.33
44	218359202		Screw,pan Head ,8-32 X 0.250				$ 10.63
46	241817901		Control Rod				$ 111.46
47	241839001		Spring-control Rod				$ 18.44
48	241830101		Bracket-control				$ 14.18
50	241675601		Guide-solenoid				$ 80.09
52	241830701		Spacer-fixed Blades				$ 12.18
53	241869601		Pin-spiral,fixed Blades				$ 9.93
54	241829601		Nut-auger				$ 18.95
55	241690301		Washer		Appelez-nous	-
56	241690201		E-ring				$ 19.13
20A	241843101		Cover-motor,front				$ 63.32
35A	241830401		Fixed Blade,round				$ 50.99
37A	241830301		Blade,crusher No.1				$ 64.00
37B	241830302		Blade,crusher No.2				$ 58.70
37C	241830303		Blade,crusher No.3				$ 52.83
45A	241675902		Spring-solenoid   (Replaces: 241675901)				$ 6.38
45B	241676001		E-ring-solenoid				$ 70.16
45C	241676101		Actuator-solenoid				$ 64.49
7A	241844201		Insulation				$ 63.42
F18	241816602		Motor-auger   (Replaces: 241816601)			Immediately	$ 154.76
F45	241675704		Solenoid Assy,115v   (Replaces: 241675701)			Immediately	$ 65.71
F45D	241675704		Solenoid,115v   (Replaces: 241675801)			Immediately	$ 65.71
FNI	241843301		Harness-wiring,high Voltage ,auger Motor				$ 194.72
NI	241829303		Ice Container Assy,w/moving Parts		Appelez-nous	-
NI	242007101		Latch		Appelez-nous	-
NI	241690601		Screw,no.10-16 Hilo		Appelez-nous	-
NI	242030601		Washer,star/lock				$ 7.19

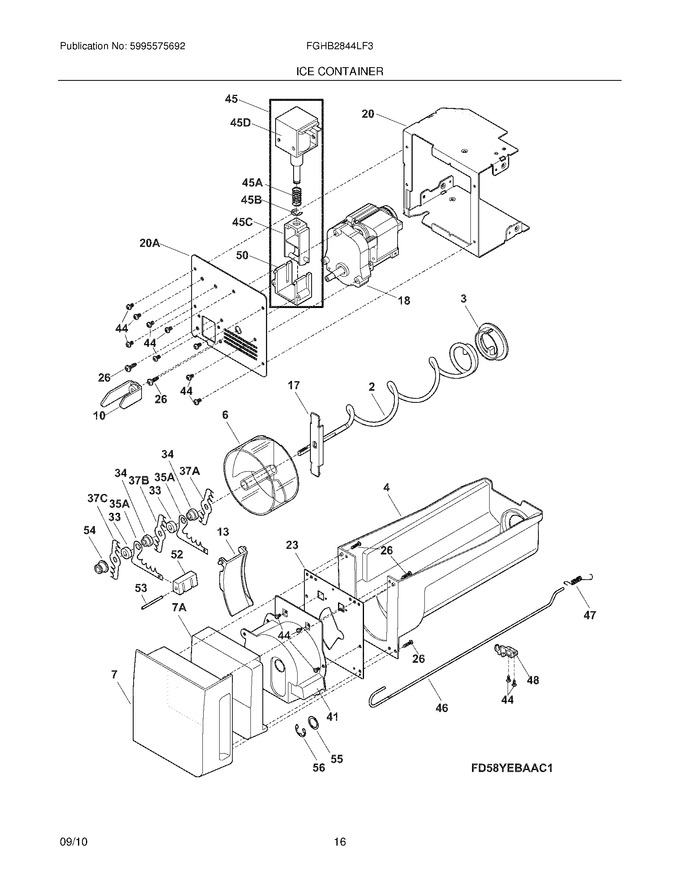

    View Diagram in Separate Window       Print Part List
