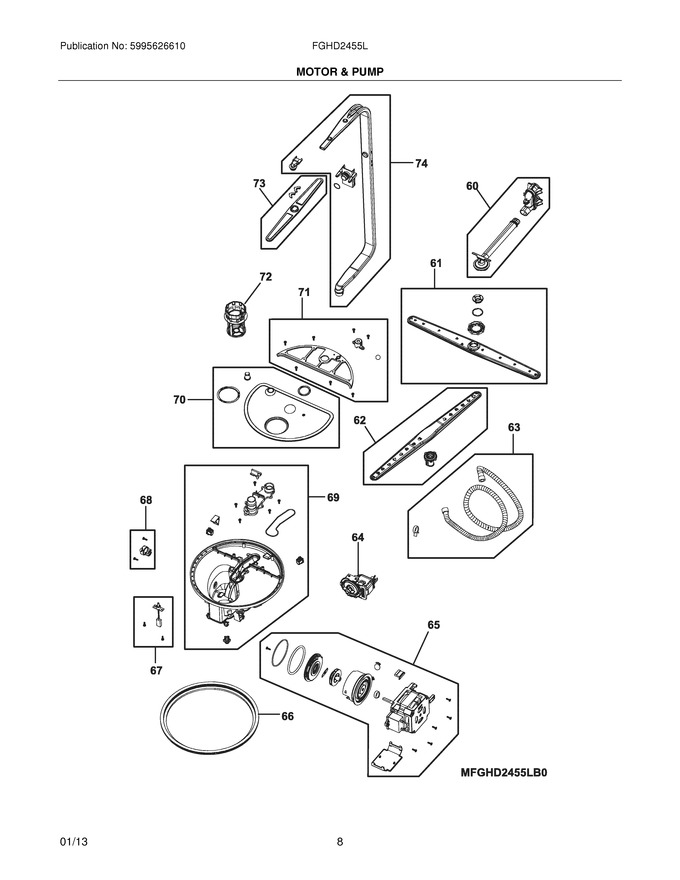

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
66	5304475638		Gasket,sump				$ 108.41
70	5304480743		Filter Assembly,coarse				$ 112.17
71	5304475643		Filter Assembly,fine ,w/screws				$ 48.67
72	5304475644		Trap,glass				$ 59.72
F60	5304480739		Duct Assembly,spray Arm ,middle				$ 32.23
F61	5304480740		Spray Arm Assembly,middle				$ 86.31
F62	5304480741		Spray Arm Assembly,lower				$ 30.40
F63	5304494065		Hose Assembly,drain ,w/clamp   (Replaces: 5304475635)			Immediately	$ 92.30
F64	5304524920		Pump,drain   (Replaces: 5304475636)			Immediately	$ 298.81
F65	5304475637		Motor Assembly,wash ,w/screws-seals				$ 290.17
F67	5304475639		Senser Assembly,thermistor ,w/screws				$ 32.03
F68	5304475640		Senser Assembly,turbidity ,w/screws				$ 153.09
F69	5304480742		Sump Assembly,w/clips-screws				$ 135.37
F73	5304480744		Spray Arm Assembly,upper				$ 58.66
F74	5304480745		Tube Assembly,delivery				$ 127.96
