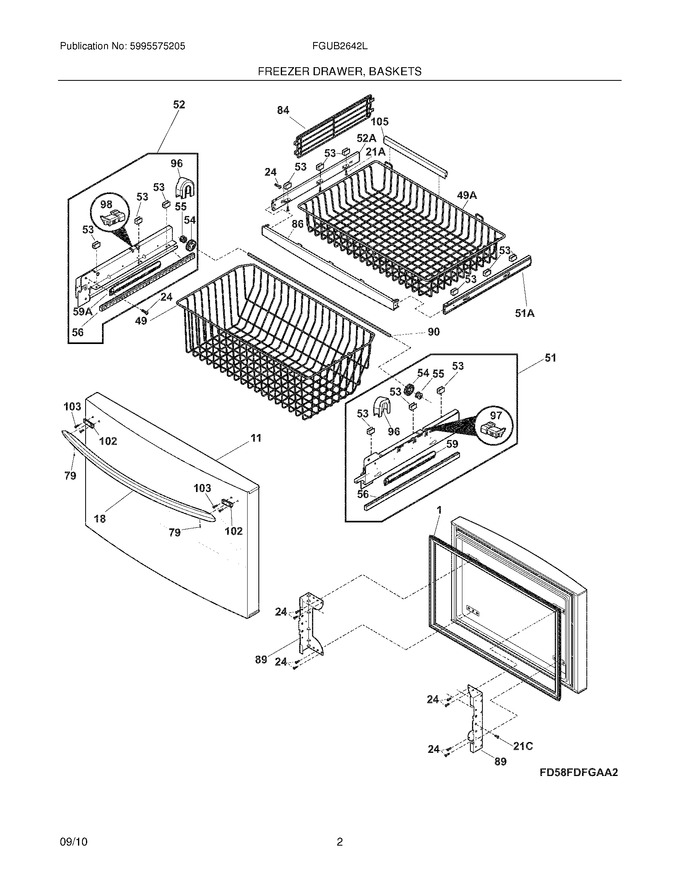

03 - Freezer Drawer - Basket


05 - Fresh Food Door


07 - Cabinet


09 - Shelves


11 - System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241987913		Door-frzr,white ,complete Assy				$ 457.22
18	242029402		Handle-door,white				$ 173.57
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,   (Replaces: 240383406)			Immediately	$ 19.23
49	242026802		Basket-frzr,lower				$ 216.41
51	241883604		Slide Assembly,basket Lower ,rh ,   (Replaces: 241883601)			Immediately	$ 287.06
52	241883704		Slide Assembly,basket Lower ,lh ,   (Replaces: 241883701)				$ 350.37
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 34.73
55	241770301		Pinion-idler				$ 21.97
56	241762801		Rack,drawer Travel				$ 226.05
59	5304474655		Closure,drawer   (Replaces: 241979702)				$ 70.88
79	218755405		Screw-set,10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
84	241780904		Divider,basket ,upper   (Replaces: 241780901)				$ 71.29
86	242090701		Bar-stabilizer,freezer Drawer				$ 63.32
89	241972302		Bracket-freezer Drawer   (Replaces: 241972301)				$ 109.21
90	241770703		Bar-timing				$ 35.07
96	241973501		Cover,pinion ,white				$ 57.27
97	241926401		Actuator,rh ,white ,light				$ 17.54
98	241926402		Actuator,lh ,white ,light				$ 16.55
102	242029301		Block-handle Mtg				$ 24.80
103	242077302		Screw,no.10 Ab Flat Hd   (Replaces: 242077301)			Immediately	$ 7.79
105	242116801		Trim-basket				$ 17.72
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
21C	241899703		Screw,truss Head ,no.10-32 X 1/4 ,zinc				$ 15.92
49A	241780809		Basket-frzr,upper				$ 146.95
51A	241894223		Slide Assembly,basket ,rh ,   (Replaces: 241894201)			Immediately	$ 132.53
52A	5304491063		Slide Assembly,basket ,lh ,   (Replaces: 241894203)				$ 155.21
59A	241979701		Closure,drawer		Appelez-nous	-
F1	5304537408		Gasket-frzr Drawer,white ,magnetic   (Replaces: 241778302)			Immediately	$ 86.28
NI	242011101		Pin-lock				$ 15.17
NI	241979601		Bumper,rubber				$ 22.68
NI	241812202		Magnet,freezer Drawer				$ 72.30
NI	242039701		Screw				$ 13.46
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
NI	242146401		Screw,hex Whd ,1/4-20 X 3/8``   (Replaces: 241899601)			Immediately	$ 14.27
