SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

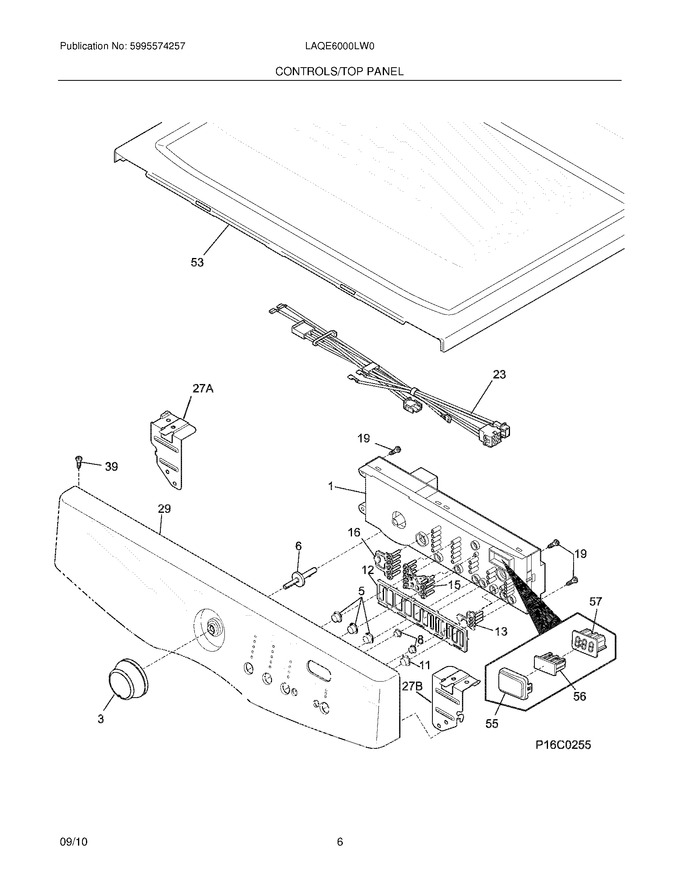

07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137314625		Knob,control				$ 53.19
2	137361210		Panel-decorated Dryer Control,white ,27		Appelez-nous	-
3	134347700		Pin,program Knob				$ 19.74
4	137320825		Push Button,round No.1 ,7				$ 29.51
5	137314725		Push Button,round No.3 ,12				$ 29.66
6	137314825		Push Button,round No.4				$ 35.12
7	137320500		Spring,push Buttons				$ 30.29
8	134557501		Light Pipe,start Group				$ 16.96
9	134552800		Light Pipe,5 X 4				$ 18.43
10	134600000		Light Pipe,row Of 5				$ 18.43
11	137320700		Digit Window,display				$ 32.03
12	134557300		Light Pipe,digital Display				$ 19.06
14	137070881		Electronic Housing,,board Assembly ,1 ,220		Appelez-nous	-
16	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
F13	134503300		Display,digital				$ 52.24
F15	137033500		Harness,main Fld Elec				$ 155.03
