SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

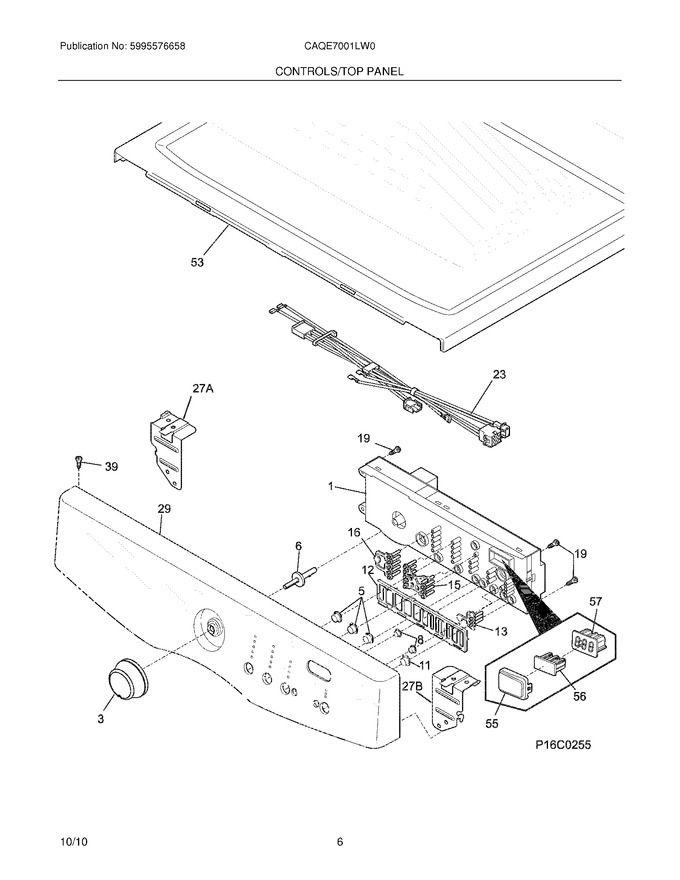

07 - Controls/top Panel


09 - Motor


11 - Eburner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137070890		Control Board,pc ,with Housing				$ 271.06
3	137314610		Knob,control ,white				$ 48.67
5	137314710		Push Button,round No.3				$ 23.57
6	134347700		Pin,program Knob				$ 19.74
8	137320810		Push Button,round No.1				$ 22.16
11	137314810		Push Button,round No.4				$ 23.05
12	137320500		Spring,push Buttons				$ 30.29
13	134557501		Light Pipe,start Group				$ 16.96
15	134552800		Light Pipe,5 X 4				$ 18.43
16	134600000		Light Pipe,row Of 5				$ 18.43
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
23	134910200		Harness,control				$ 118.55
29	137345410		Panel,control Console ,white				$ 169.47
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	137371700		Panel,work Top ,white				$ 270.11
55	137320700		Window,digit Display				$ 32.03
56	134557300		Light Pipe,digital Display				$ 19.06
27A	134710900		Bracket,control Panel ,left Hand ,mounting				$ 21.27
27B	134711000		Bracket,control Panel ,right Hand ,mounting				$ 23.63
F23	137033500		Harness,main Fld Elec				$ 155.03
F57	134503300		Display,digital				$ 52.24
FNI	137150200		Terminal,block Kit ,main				$ 31.90
NI	134926600		Damper,sound				$ 14.18

    View Diagram in Separate Window       Print Part List
