SELECT A DIAGRAM

01 - Cover

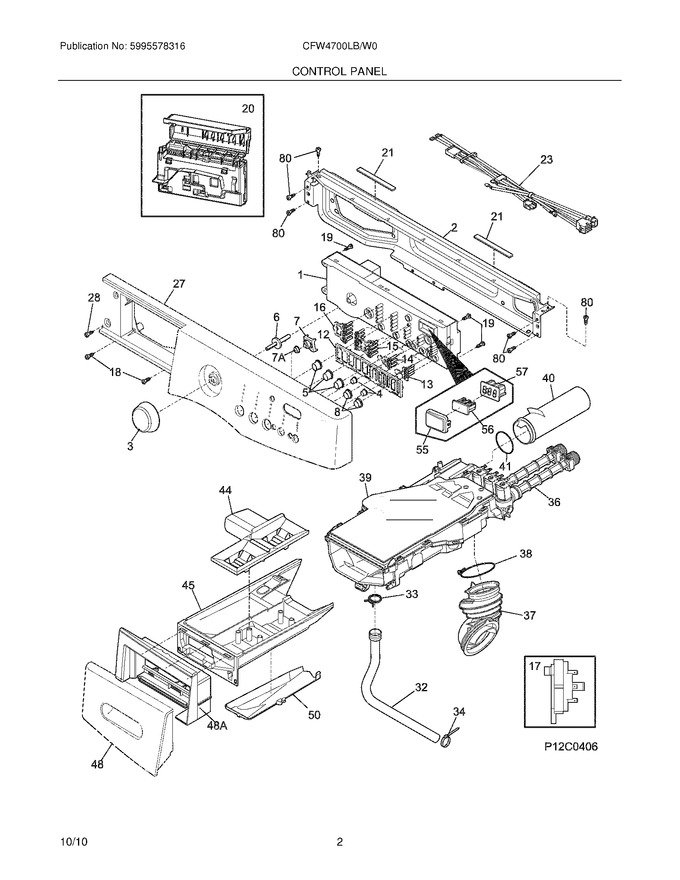

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134887400		Bracket,control Panel ,mounting				$ 92.61
3	137314625		Knob,control				$ 53.19
4	137320825		Push Button,round No.1 ,7				$ 29.51
5	137314725		Push Button,round No.3 ,12				$ 29.66
6	134347700		Pin,program Knob				$ 19.74
7	134885100		Push Button,round ,no.2		Appelez-nous	-
8	137314825		Push Button,round No.4				$ 35.12
12	137320500		Spring,push Buttons				$ 30.29
13	134557500		Light Pipe,start Group				$ 5.67
14	134557400		Light Pipe,row Of 3				$ 6.67
15	134552800		Light Pipe,5 X 4				$ 18.43
16	134600000		Light Pipe,row Of 5				$ 18.43
18	131302800		Screw,10-16ab X 0.375			Immediately	$ 26.58
19	131302901		Screw,10-16 X 0.750				$ 4.96
21	134407900		Dampener,vibration				$ 17.01
27	137313960		Panel,control Console		Appelez-nous	-
28	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
32	134586500		Hose,disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie,5.60 Inch   (Replaces: 5303321209)				$ 10.63
37	134372300		Hose,disp-to-tub				$ 58.32
38	134372400		Clamp,tub Hose				$ 64.49
39	134446140		Housing,dispenser ,ntc Long Tube				$ 224.96
40	134372100		Tube,disp-to-overflo				$ 50.87
41	134372200		O-ring,overflow Tube				$ 13.74
44	134370200		Cover,dispenser			Immediately	$ 41.11
45	134370000		Drawer,dispenser			Immediately	$ 74.11
48	137393260		Handle/drawer,dispenser		Appelez-nous	-
50	134409320		Conveyor,dispenser ,lower   (Replaces: 134370100)			Immediately	$ 366.58
55	137320700		Window,digit Display				$ 32.03
56	134557300		Light Pipe,digital Display				$ 19.06
80	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
48A	137314560		Frame,drawer Handle ,black				$ 81.22
7A	137360300		Cap,button ,delay Start				$ 35.07
F1	137035240NH		Control Board,printed Circuit ,with Housing   (Replaces: 137035240)				$ 219.77
F17	134762010		Switch,pressure				$ 42.64
F20	137208014NH		Control Board,printed Circuit ,with Housing   (Replaces: 137208000)				$ 281.22
F23	137288500		Harness,wiring				$ 249.42
F36	134959340		Valve,dispenser ,ntc/long Tube			Immediately	$ 162.67
F57	134503300		Display,digital				$ 52.24
NI	134371300		Gasket,disp-to-valve			Immediately	$ 51.04

    View Diagram in Separate Window       Print Part List
