SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body

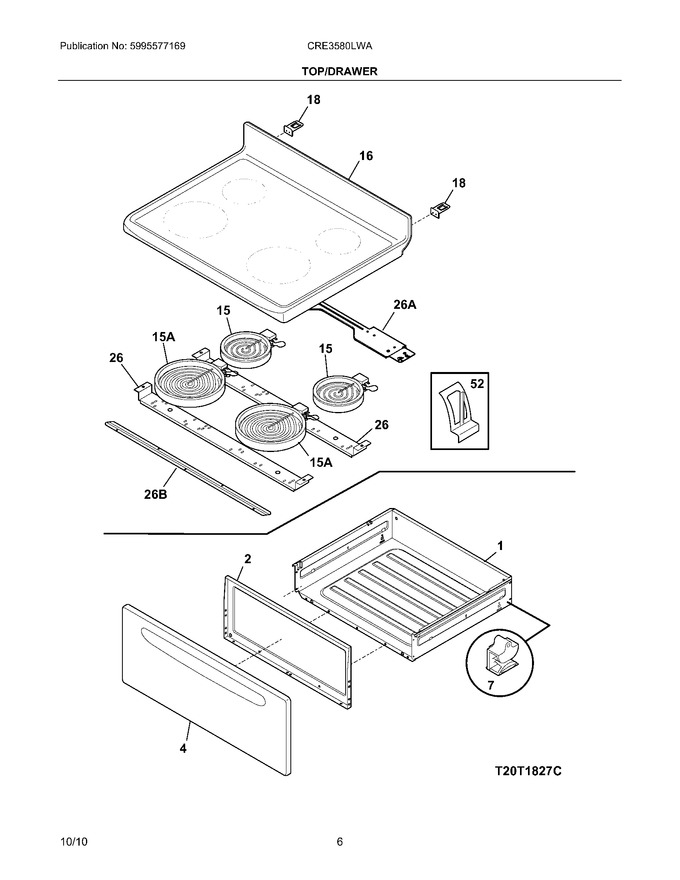

07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011503 | Drawer |
|
$ 131.51 | |||||
| 2 | 316231500 | Liner,drawer |
|
$ 54.40 | |||||
| 4 | 316231305 | Panel,drawer ,white |
|
$ 55.80 | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 316456236 | Main Top,smooth Top ,white |
|
$ 609.53 | |||||
| 18 | 316580800 | Bracket-hinge,main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 316427600 | Channel,element Support ,(2) |
|
- | |||||
| 52 | 316461700 | Clip,element Mtg |
|
$ 12.05 | |||||
| 26A | 316498200 | Bracket-support,chassis ,aluminum |
|
$ 52.33 | |||||
| 26B | 316214202 | Bracket,chassis Support ,front |
|
$ 25.41 | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200w ,(2) ,radiant (Replaces: 318198846) |
|
Immediately | $ 122.86 | ||||
| F15A | 316135401 | Element,surface ,9`` ,2500 W ,radiant |
|
Immediately | $ 80.96 | ||||
| FNI | 316580417 | Harness,wiring ,surface Units |
|
$ 126.00 | |||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316468100 | Cleaner,smoothtop ,w/sponge |
|
$ 4.88 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 |
