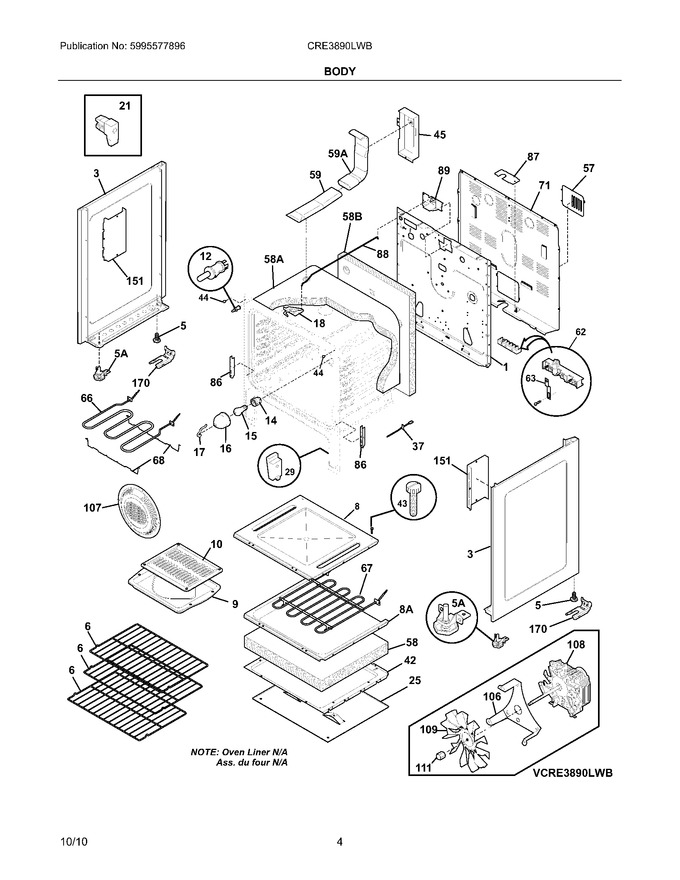

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401802		Panel,main Back		Appelez-nous	-
3	316400143		Panel,bodyside ,white ,lh   (Replaces: 316400117)				$ 140.85
3	316400142		Panel,bodyside ,white ,rh   (Replaces: 316400116)				$ 140.85
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316496201		Rack,oven			Immediately	$ 103.48
8	316400601		Panel,oven Bottom				$ 125.87
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
12	316445500		Switch,oven Light ,door Frame			Immediately	$ 54.74
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
25	316406200		Shield,heat ,lower				$ 87.97
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 23.82
42	316407700		Shield,wool ,lower				$ 131.19
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Spacer,oven Door				$ 12.05
45	316234100		Shield,wire ,vent Tube				$ 70.16
57	316457801		Cover,access				$ 12.89
58	316403802		Insulation,oven Sump				$ 110.57
59	316208401		Vent Tube,assembly ,w/catalyst				$ 194.14
63	316542600		Plate,grounding Strap		Appelez-nous	-
67	316413800		Element,bake ,hidden			Immediately	$ 270.75
68	316429100		Support,element ,broil				$ 62.51
71	316422304		Shield,rear Wall				$ 115.53
86	316441300		Receptacle,hinge ,(2)   (Replaces: 316537400)				$ 21.97
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod,auto Latch				$ 72.30
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026701		Cover,fan				$ 408.89
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
58A	316406602		Insulation,oven Wrapper				$ 121.19
58B	316406500		Insulation,oven Back				$ 88.60
59A	316208304		Tube,oven Vent ,upper				$ 80.09
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
8A	316411104		Base,bake Element		Appelez-nous	-
F108	316256100		Motor-fan			Immediately	$ 211.18
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F62	5303935271		Terminal Block Kit				$ 73.56
F66	316430900		Element,broil ,4000w			Immediately	$ 256.20
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	316580232		Harness,wiring ,main		Appelez-nous	-
NI	5303289910		Screw,8a ,1``				$ 5.67
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316542200		Insulator		Appelez-nous	-
NI	316089500		Screw,10-16 X .486				$ 13.46
NI	5303285179		Screw,wafer Head ,8-32t X 0.500 ,black				$ 13.46
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316064600		Support,oven Bottom				$ 18.95
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 14.18
NI	316231800		Cover,hole ,conv. Element		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
