01 - Cover Sheet

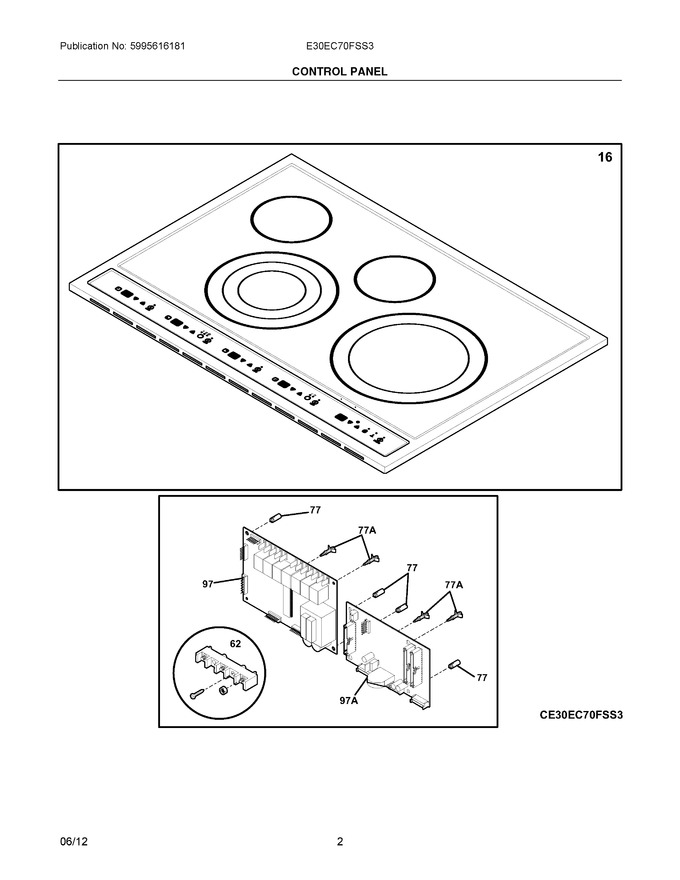

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318282530 | Main Top Assy, Glass/steel, Black/stainless, W/touch Control |
|
$ 739.19 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 77 | 318293702 | Spacer, Control |
|
$ 16.22 | |||||
| 97 | 316442112 | Board, Power, Relay |
|
Immediately | $ 328.64 | ||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| 97A | 316575410 | Board, Power, Uib |
|
$ 206.54 | |||||
| NI | 5304400192 | Retainer, Wiring |
|
- | |||||
| NI | 5303323140 | Screw, Ground, 10-32 X 0.375 |
|
- | |||||
| NI | 318078580 | Box & Wires Assy |
|
- | |||||
| NI | 318402359 | Harness, Wiring, Interface |
|
- | |||||
| NIA | 316205500 | Nut, 10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NIB | 5303323139 | Screw, 10-24 X 0.906 |
|
$ 13.46 | |||||
| NIC | 318532146 | Harness, Wiring, Ground Terminal |
|
- |
