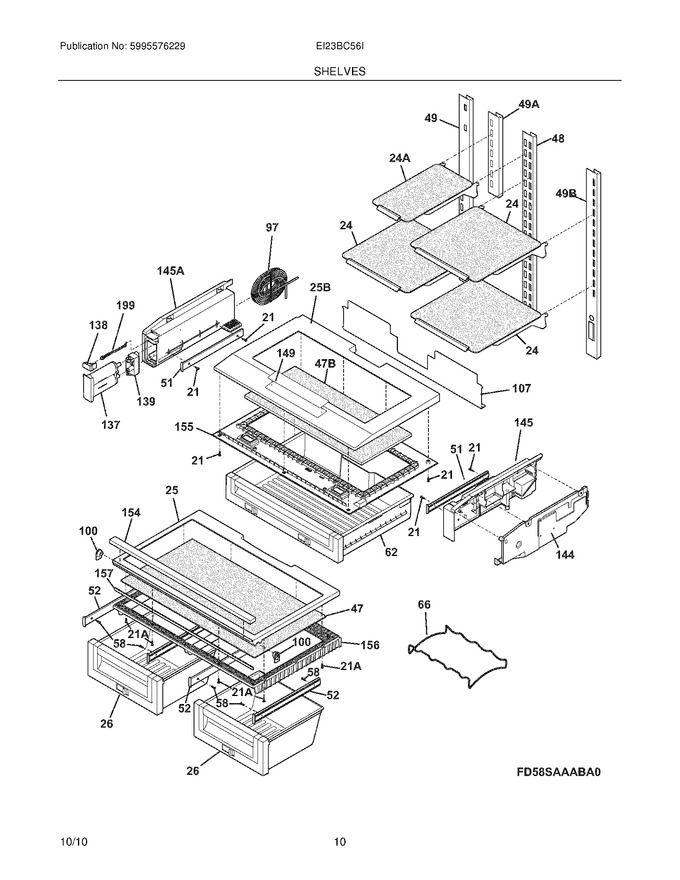

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
24	241839902		Shelf-glass,formed				$ 427.36
25	241802205		Frame-crisper Cover,upper   (Replaces: 241802203)				$ 119.07
26	241772808		Pan-crisper   (Replaces: 241772804)				$ 269.22
47	241768802		Glass-crisper Frame				$ 77.36
48	241774201		Channel-shelf Mtg,center				$ 43.73
49	241773801		Channel-shelf Mtg,side ,(2) ,lh				$ 34.12
51	241816101		Slide-deli				$ 152.38
52	241769002		Slide-crisper Cover				$ 119.78
58	241941202		Screw,8-18 X 3/8				$ 15.17
62	241827207		Pan-deli				$ 296.36
66	241748901		Rack-wine				$ 77.97
97	241821202		Water Tank				$ 78.82
100	241768601		Support-crspr Cover				$ 19.13
107	241925901		Cover-water Tank				$ 84.68
137	EWF01C		Filter,water ,carbon Cassette ,front ,with O`rings   (Replaces: 241932301)			Immediately	$ 75.59
138	241885901		Button-filter Release				$ 28.35
139	240396002		Base-water Filter			Immediately	$ 119.66
144	241803901		Cover-deli Air Control		Appelez-nous	-
145	241803801		Housing-deli Air Control				$ 120.02
149	241974501		Insert-pan Cover,plastic				$ 57.79
154	241879902		Trim-crisper Cover				$ 39.44
155	241803403		Frame-deli Cover,lower				$ 148.13
156	241872006		Frame-crisper Cover,lower   (Replaces: 241872004)				$ 119.78
157	241872201		Beam-crisper Cover				$ 53.85
199	240397501		Rod				$ 55.57
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
24A	241839904		Shelf-glass,formed				$ 569.52
25B	241803303		Frame-deli Cover,upper				$ 223.72
47B	241967401		Glass,2 Pane Insulatd				$ 225.39
49A	241865701		Channel-shelf Mtg,center ,icemaker Shelf				$ 25.38
49B	241774301		Channel-shelf Mtg,side ,rh				$ 43.05
F137	240527001		O-ring,wtr Filter Base   (Replaces: 240526901)				$ 10.62
F139	241858401		Screw,no.6 X 1/2 Hilo				$ 13.05
F145	242058705		Support,rail		Appelez-nous	-
F199	240398401		Spring-filter Release Rod				$ 59.16
F24A	241809204		· Trim-shelf,hand Grip		Appelez-nous	-
F47B	5304469950		Sealant,rubber Silicone			Immediately	$ 89.95
NI	241809203		Trim-shelf,hand Grip		Appelez-nous	-
NI	241935598		Energy Guide		Appelez-nous	-
