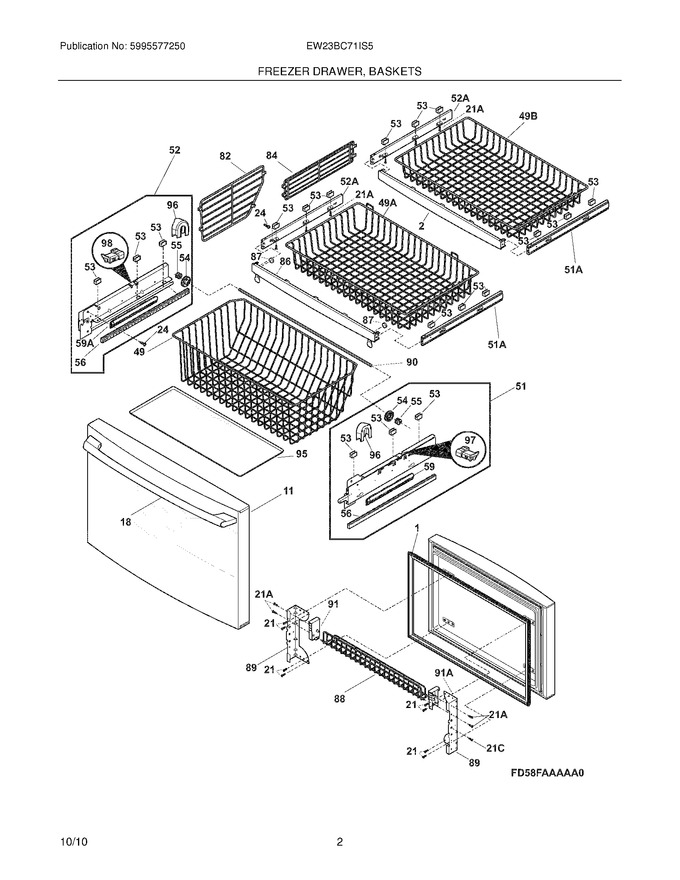

03 - Freezer Drawer, Baskets


05 - Fresh Food Door


07 - Cabinet


09 - Shelves


11 - Cooling System


13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304507340		Trim,drawer ,stabilizer   (Replaces: 241807605)			Immediately	$ 45.55
11	241987920		Door-frzr,stainless ,complete Assy				$ 371.43
18	241881310		Handle-frzr Drawer,stainless				$ 271.45
21	240383407		Screw,truss Hd Quad ,no.10-16 X .500 ,white				$ 12.76
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	242027001		Basket-frzr,lower				$ 191.00
51	241883602		Slide Assembly,basket Lower ,rh ,freezer Drawer		Appelez-nous	-
52	241883702		Slide Assembly,basket Lower ,lh ,freezer Drawer		Appelez-nous	-
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 34.73
55	241770301		Pinion-idler				$ 21.97
56	241762802		Rack,drawer Travel				$ 49.76
59	5304474655		Closure,drawer   (Replaces: 241979702)				$ 70.88
82	242027101		Divider,basket				$ 64.88
84	241780902		Divider,basket ,upper		Appelez-nous	-
86	241953202		Bar,stabalizer ,freezer Drawer				$ 165.14
87	241812202		Magnet,freezer Drawer				$ 72.30
88	241824008		Rack-tilt Out,door   (Replaces: 241824002)				$ 123.62
89	241972302		Bracket-freezer Drawer   (Replaces: 241972301)				$ 109.21
90	241770705		Bar,timing   (Replaces: 241770702)				$ 50.66
91	241824102		Cap-door Rack				$ 17.44
95	241770809		Tray,spill Guard				$ 84.02
96	241973501		Cover,pinion ,white				$ 57.27
97	241926401		Actuator,rh ,white ,light				$ 17.54
98	241926402		Actuator,lh ,white ,light				$ 16.55
21A	242146401		Screw,hex Whd ,1/4-20 X 3/8`` ,connects Frz,rails To Door ,(4)   (Replaces: 241899601)			Immediately	$ 14.27
21C	241899701		Screw-no.10-32 X 3/8 Truss Head,truss Head,no.10-32 X 3/8 ,zinc		Appelez-nous	-
49A	241780803		Basket-frzr,upper				$ 160.60
49B	241831303		Basket-frzr,ceiling ,up Upper				$ 145.01
51A	5304491062		Slide Assembly,basket ,rh ,freezer Drawer   (Replaces: 241894202)				$ 201.29
52A	5304491062		Slide Assembly,basket ,lh ,freezer Drawer   (Replaces: 241894204)				$ 201.29
59A	241979701		Closure,drawer		Appelez-nous	-
91A	241824101		Cap,door Rack ,white				$ 17.44
F1	5304537408		Gasket-frzr Drawer,white ,magnetic   (Replaces: 241778302)			Immediately	$ 86.28
NI	242011101		Pin-lock				$ 15.17
NI	241979601		Bumper,rubber				$ 22.68
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
NI	241601002		Wrench,allen		Appelez-nous	-
NI	242039701		Screw				$ 13.46
