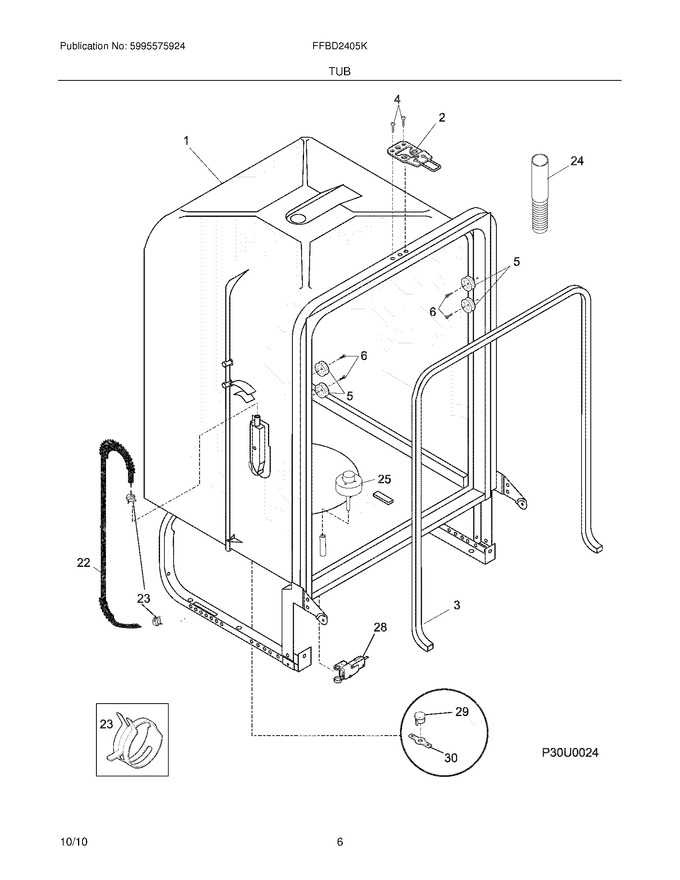

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 154662601 | Strike,door |
|
Immediately | $ 39.69 | ||||
| 3 | 8581548276014 | Gasket,tub (Replaces: 154782401) |
|
Immediately | $ 26.30 | ||||
| 4 | 154200602 | Screw,10-16 X 3/8 ,hex |
|
$ 10.21 | |||||
| 5 | 5304507405 | Roller,tub (Replaces: 154333902) |
|
Immediately | $ 25.79 | ||||
| 6 | 5303943103 | Screw W/washer,(8) |
|
Immediately | $ 17.72 | ||||
| 22 | 5304523457 | Tubing,water Inlet (Replaces: 154577401) |
|
Immediately | $ 14.03 | ||||
| 23 | 5304538466 | Clamp-tubing,(2) (Replaces: 5303318539) |
|
$ 2.31 | |||||
| 28 | 154773201 | Switch Assy,float (Replaces: 154408701) |
|
Immediately | $ 55.29 | ||||
| 30 | 154241101 | Retainer,thermostat |
|
$ 3.62 | |||||
| F1 | 154729301 | Tub Assy,w/frame Parts ,white ,pw |
|
$ 320.09 | |||||
| F24 | 807117001 | Hose,drain (Replaces: 154753201) |
|
Immediately | $ 36.14 | ||||
| F25 | 5304532207 | Float (Replaces: 154767801) |
|
Immediately | $ 6.89 | ||||
| F29 | 154290204 | Thermostat,re-settable |
|
Immediately | $ 64.49 | ||||
| NI | 154701001 | Gasket,tub ,corner ,(2) (Replaces: 154685101) |
|
Immediately | $ 17.00 | ||||
| NI | 154297701 | Screw,retainer-thermo |
|
$ 13.46 | |||||
| NI | 154041001 | Screw,plask No.1 ,10-10 X 9/16 |
|
- | |||||
| NI | 154200601 | Screw,no.10-16 X 3/8 |
|
$ 7.98 | |||||
| NI | 5300807270 | Screw,(2) ,countertop Mtg. |
|
$ 6.72 | |||||
| NI | 154380601 | Clamp,hose ,1.5`` Open ,worm Gear ,(5) |
|
$ 73.71 |
