SELECT A DIAGRAM

01 - Cover

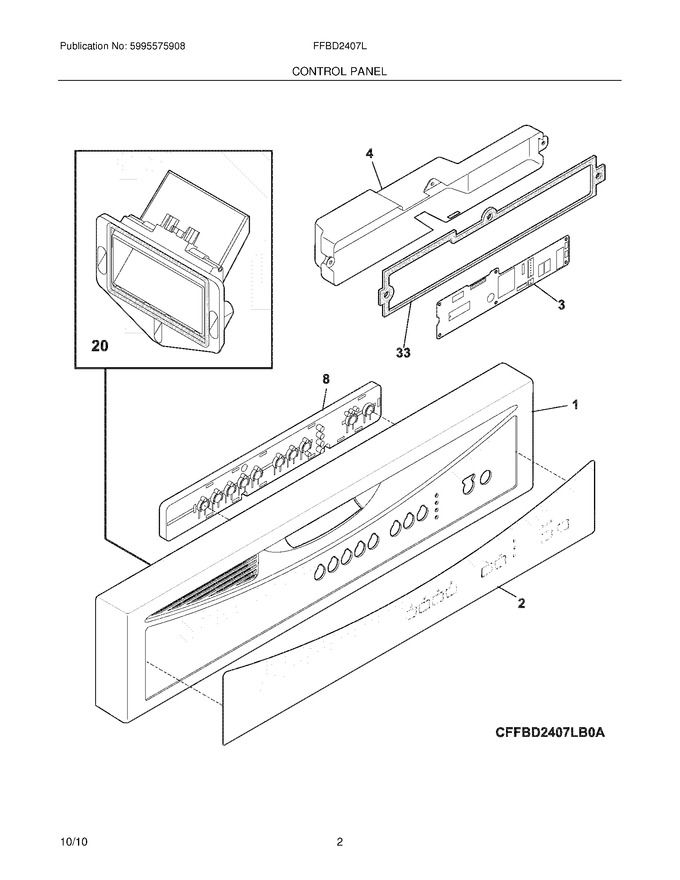

03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506543		Panel,console ,black ,10 Button   (Replaces: 154788803)			Immediately	$ 84.37
2	154804103		Overlay,console Panel ,black				$ 50.93
4	154552101		Cover,control				$ 57.17
20	154433001		Vent Assy,static Dry				$ 50.82
33	154553501		Gasket,cover				$ 42.34
F3	5304512731		Control   (Replaces: 154783201)			Immediately	$ 138.42
F8	154774401		Switch Assembly,8 Button   (Replaces: 154738001)				$ 135.19
FNI	154738101		Harness,wiring ,main		Appelez-nous	-
NI	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154758450		Energy Guide		Appelez-nous	-
NI	808326801		Screw,ground ,no.8-18 X .375   (Replaces: 154409401)				$ 2.84
NI	154793401		Screw,dry Duct ,(3)				$ 7.09

    View Diagram in Separate Window       Print Part List
