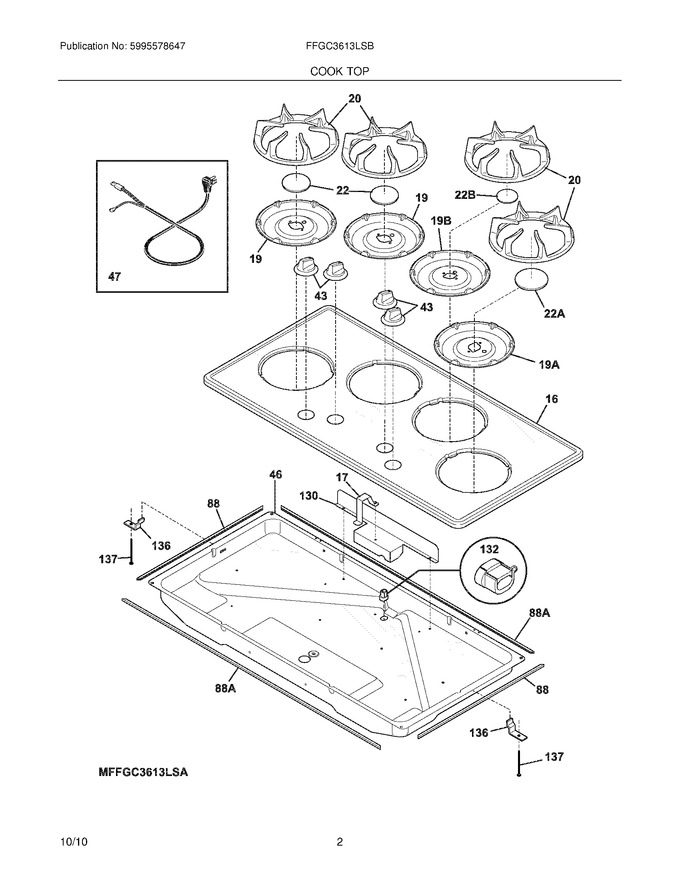

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318327401		Maintop,stainless ,w/graphics		Appelez-nous	-
17	318406302		Bracket,retainer		Appelez-nous	-
19	318168035		Pan,burner ,medium ,black		Appelez-nous	-
20	318120007		Grate,(4)		Appelez-nous	-
22	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
43	316544026		Knob,control ,black		Appelez-nous	-
46	318077131		Burner Box		Appelez-nous	-
47	318144006		Cord,service		Appelez-nous	-
88	318052804		Gasket,cooktop		Appelez-nous	-
130	318125005		Shield,burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
19A	318168038		Pan,burner ,large ,black		Appelez-nous	-
19B	318168032		Pan,burner ,small ,black		Appelez-nous	-
22A	316261904		Cap,12k Burner ,black				$ 46.36
22B	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
88A	318052803		Gasket,cooktop		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
