SELECT A DIAGRAM

01 - Cover

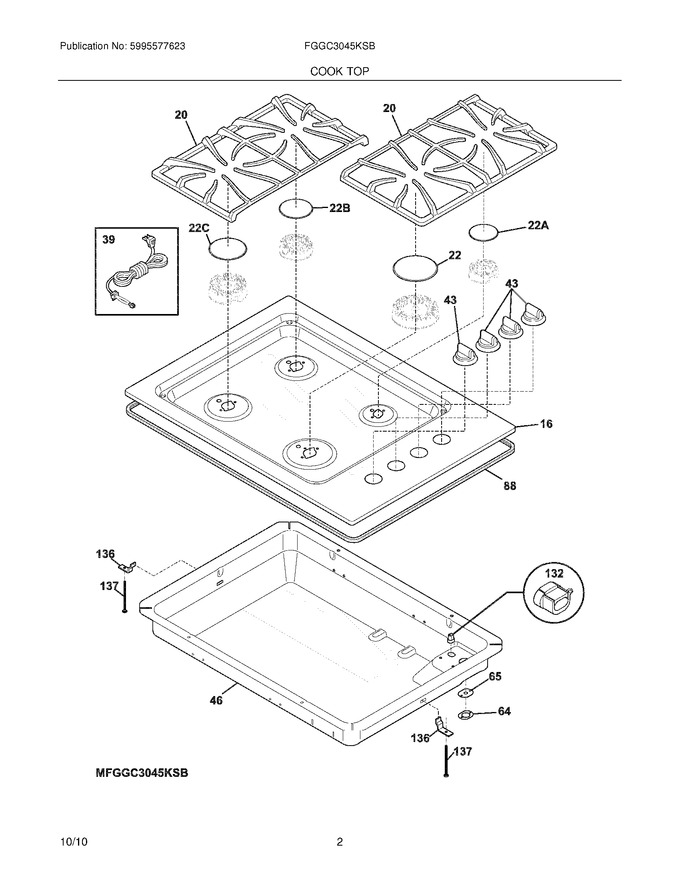

03 - Main Top


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318560603		Manitop,assembly ,stainless				$ 321.20
20	318560200		Grate,burner ,black ,(2)		Appelez-nous	-
22	5304508468		Cap,burner ,17k ,black   (Replaces: 316262104)				$ 49.45
39	318144006		Cord,service		Appelez-nous	-
43	316564608		Knob,top Valve ,black				$ 34.86
46	318278907		Box,burner		Appelez-nous	-
64	5303304033		Bracket,retainer		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
88	318280120		Gasket,cooktop ,93``				$ 138.29
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22C	316261904		Cap,12k Burner ,black				$ 46.36
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5303323171		Tape,aluminum ,2``		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
