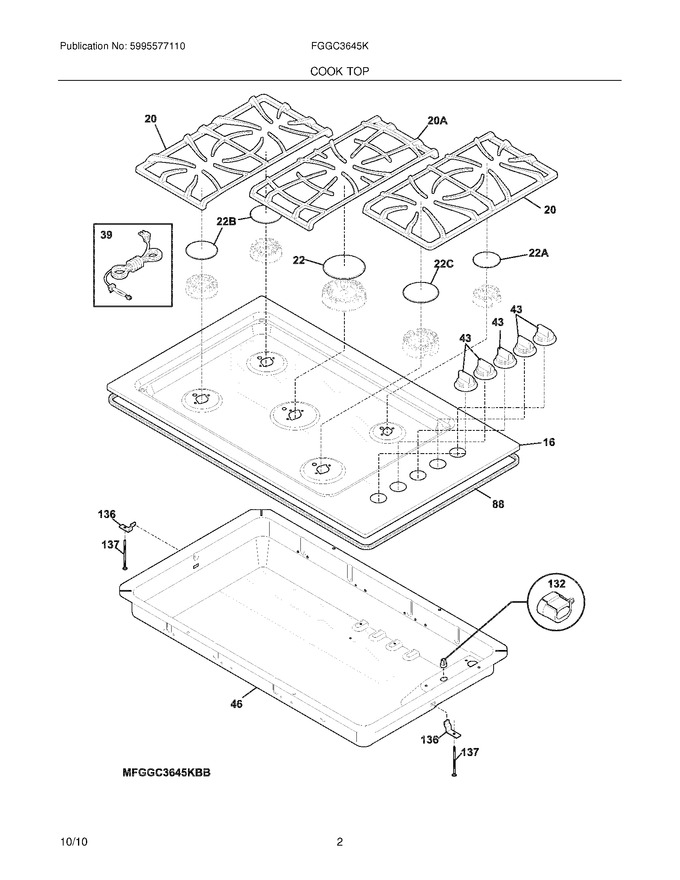

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318560025		Maintop,assembly ,white		Appelez-nous	-
20	318560210		Grate,burner ,black ,(2)		Appelez-nous	-
22	5304508468		Cap,burner ,17k ,black   (Replaces: 316262104)				$ 49.45
37	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
39	318144006		Cord,service		Appelez-nous	-
43	316545105		Knob,top Valve ,white				$ 34.97
46	318279006		Box,burner		Appelez-nous	-
88	318280121		Gasket,cooktop ,93``				$ 156.92
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318560440		Grate,black ,center				$ 243.63
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22C	316261904		Cap,12k Burner ,black				$ 46.36
NI	5303323171		Tape,aluminum ,2``		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
