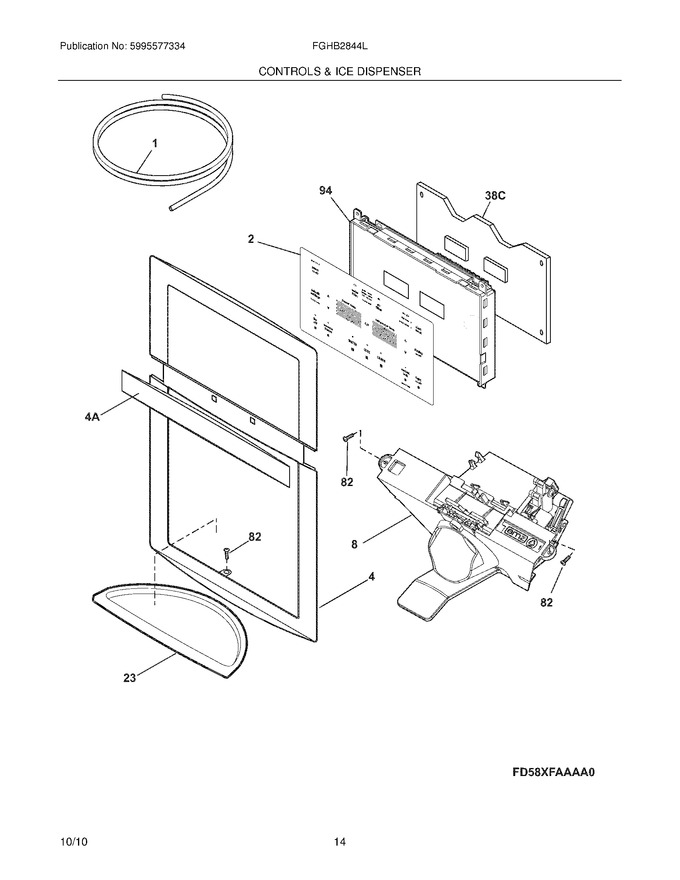

13 - Controls & Ice Dispenser


15 - Ice Container


17 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976424		Tube-water Inlet,64.00`` ,yellow				$ 20.89
4	242034202		Cover-module,black				$ 53.07
8	242074213		Module-dispenser,black   (Replaces: 242074201)				$ 255.86
23	242034002		Drip Tray,black		Appelez-nous	-
82	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
94	242034101		Housing-control				$ 52.34
4A	242033902		Trim,facade				$ 40.31
F2	242166901		Switch-membrane   (Replaces: 242035601)				$ 168.69
F38C	241973711		Board-control   (Replaces: 241973706)			Immediately	$ 347.34
FNI	241510904		Harness-dispenser,grounding				$ 60.96
NI	241920101		Tube-water Inlet,green ,valve To I.m.				$ 46.64
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	5303918484		Chute-ice   (Replaces: 242105401)				$ 30.47
