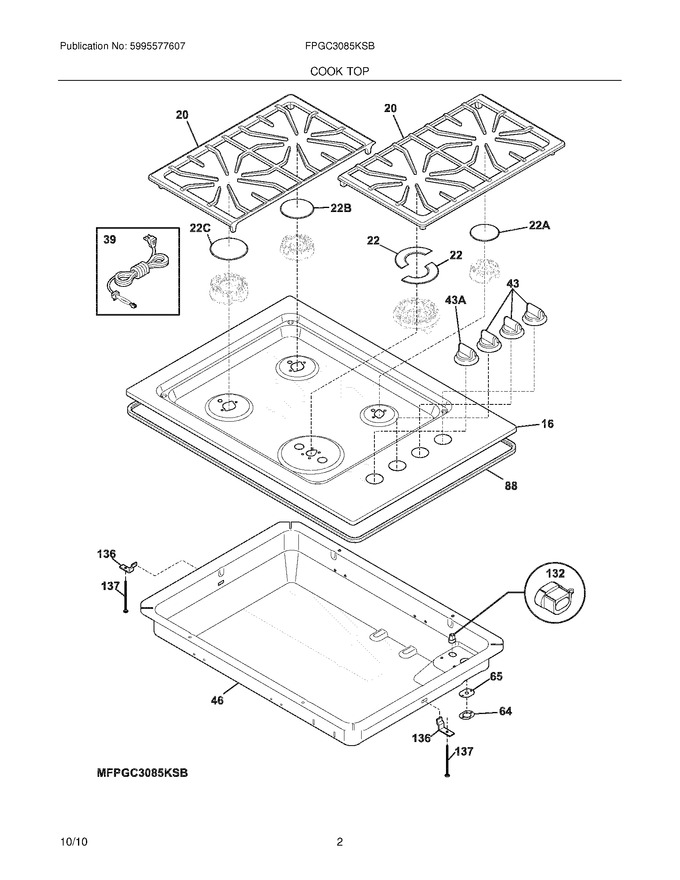

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	991099931		Manitop,assembly ,stainless   (Replaces: 318560601)				$ 0.02
20	318560100		Grate,burner ,black ,20 ,(2)		Appelez-nous	-
22	316262204		Cap,17k Twin Burner ,black ,(2)			Immediately	$ 72.80
39	318144006		Cord,service		Appelez-nous	-
43	316564605		Knob,control ,stainless ,single				$ 204.07
46	318278907		Box,burner		Appelez-nous	-
64	5303304033		Bracket,retainer		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
88	318280120		Gasket,cooktop ,93``				$ 138.29
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22C	316261904		Cap,12k Burner ,black				$ 46.36
43A	316564606		Knob,control ,stainless ,dual				$ 106.05
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 5303323168)				$ 31.36
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
