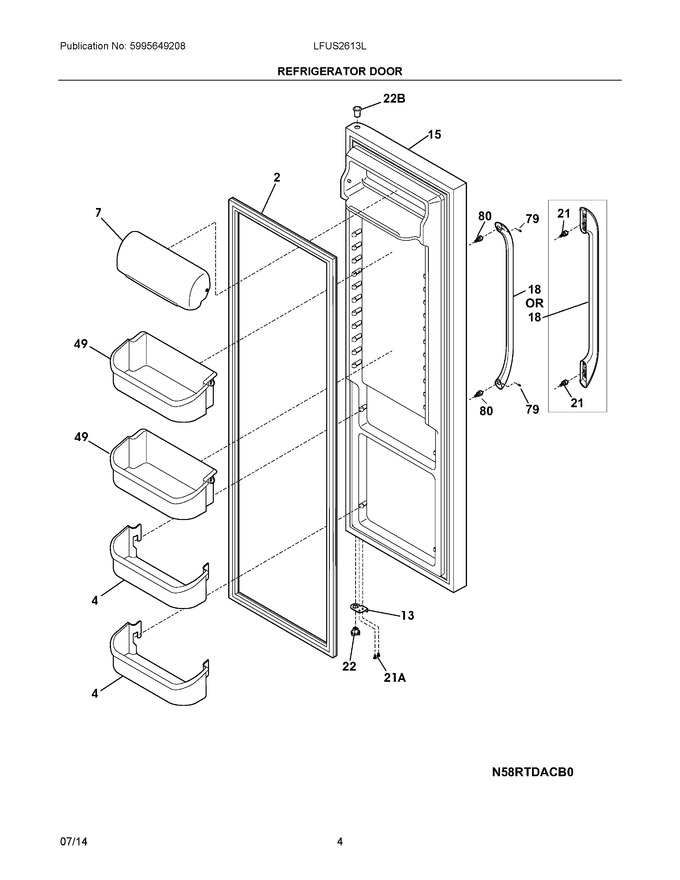

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786013 | Gasket-refr Door, White, Magnetic (Replaces: 241786001) |
|
$ 95.90 | |||||
| 4 | 240323002 | Bin-door, Pseudo, Clear, Bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 241942603 | Door Stop, Black, Ref |
|
$ 20.56 | |||||
| 15 | 242038842 | Door-refr, White, Complete Assy |
|
- | |||||
| 18 | 242059101 | Handle-door, White |
|
$ 125.89 | |||||
| 21 | 241695904 | Screw |
|
$ 14.41 | |||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.09 | |||||
| 49 | 240356402 | Bin-door, Gallon |
|
Immediately | $ 106.83 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760403 | Bearing, Hinge, Top |
|
Immediately | $ 19.13 |
