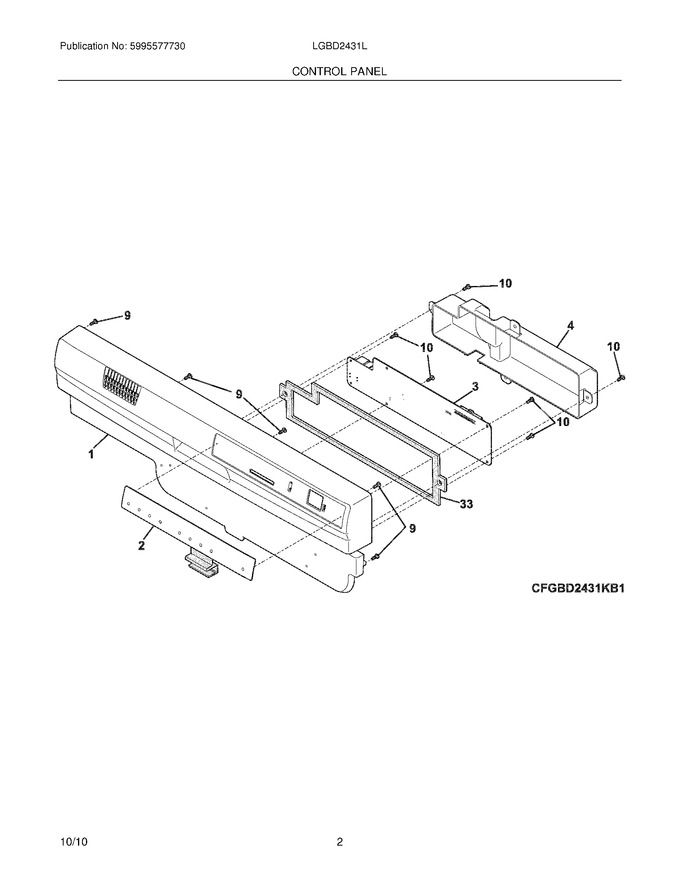

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154752603		Console Assembly,w/pocket Handle ,black		Appelez-nous	-
4	154718801		Cover,control				$ 35.44
9	154783101		Screw,phillips ,8-10 X .7   (Replaces: 154282901)			Immediately	$ 7.09
10	154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.				$ 9.22
33	154478901		Gasket,cover				$ 61.66
F2	807327602		Insert,control Panel ,black   (Replaces: 154731703)				$ 98.51
F3	807024501		Control Assembly,electronic   (Replaces: 154759001)				$ 286.28
FNI	154791401		Harness,wiring ,main		Appelez-nous	-
NI	154758430		Energy Guide		Appelez-nous	-
NI	808326801		Screw,ground ,no.8-18 X .375   (Replaces: 154409401)				$ 2.84
