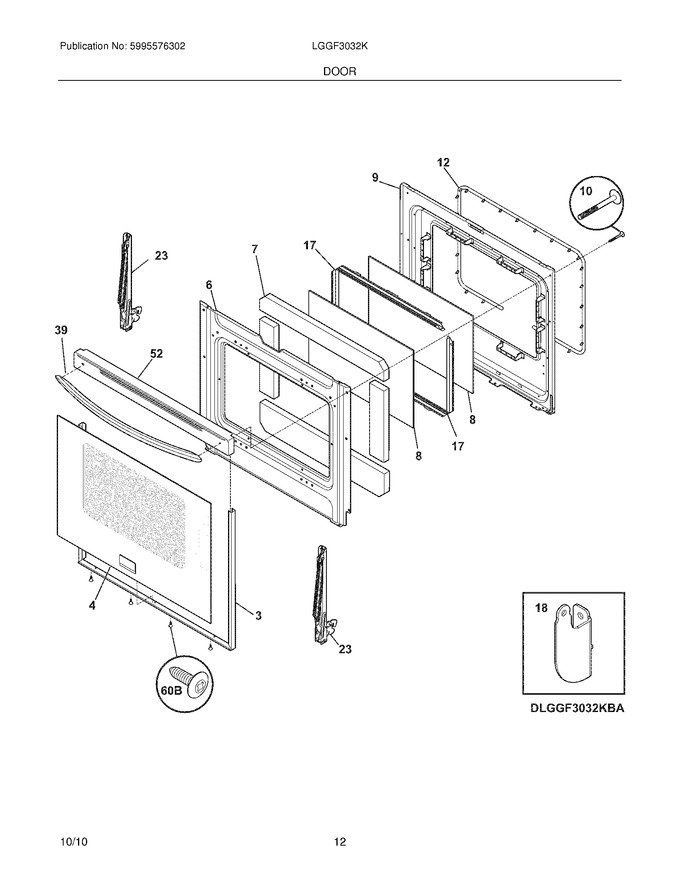

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935325		Trim Kit-door,3 Sided ,bisque ,w/tape		Appelez-nous	-
4	316558902		Glass,oven Door ,bisque ,outer		Appelez-nous	-
6	316402316		Shield,wool   (Replaces: 316402310)			Immediately	$ 88.72
7	316403900		Insulation,oven Door			Immediately	$ 72.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423811		Liner,oven Door				$ 141.54
10	316433300		Screw,10-14 X 2.125`` ,handle Mtg.			Immediately	$ 27.50
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
23	316575902		Hinge,oven Door				$ 102.38
39	316544502		Handle,door ,bisque		Appelez-nous	-
52	316575502		Cap,door Trim ,bisque				$ 101.54
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
