SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

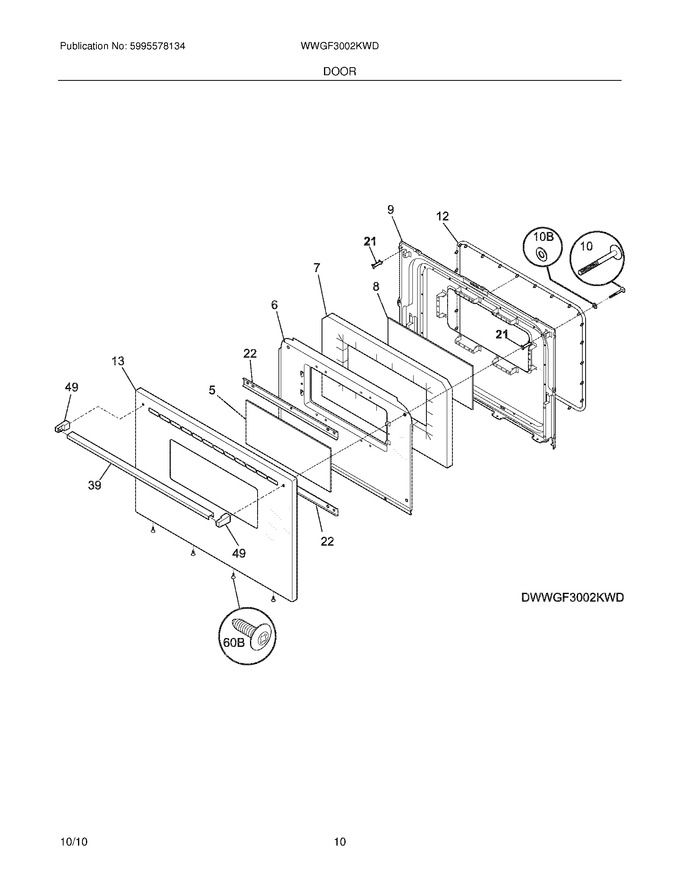

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316050307		Glass,oven Door ,white ,outer				$ 186.27
6	316222703		Shield,oven Door ,wool   (Replaces: 316222709)				$ 78.67
7	316236802		Insulation,oven Door				$ 41.63
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316230628		Liner,oven Door				$ 128.90
10	316001009		Screw,waf Hd Sq ,10-24 X 1.88 ,(2) ,handle Mtg				$ 15.17
12	316239700		Seal,oven Door			Immediately	$ 152.43
13	316202707		Panel,oven Door ,white				$ 123.64
21	316284101		Spacer,door Handle ,(2)		Appelez-nous	-
22	5303272476		Retainer,glass ,(2) ,angle		Appelez-nous	-
39	316545301		Handle,oven Door ,white   (Replaces: 316020202)			Immediately	$ 130.85
49	316137000		End Cap,handle ,white ,(2)				$ 64.50
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316433600		Label,anti-tip		Appelez-nous	-
NI	316245600		Seal,door ,air Gap				$ 48.67
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
