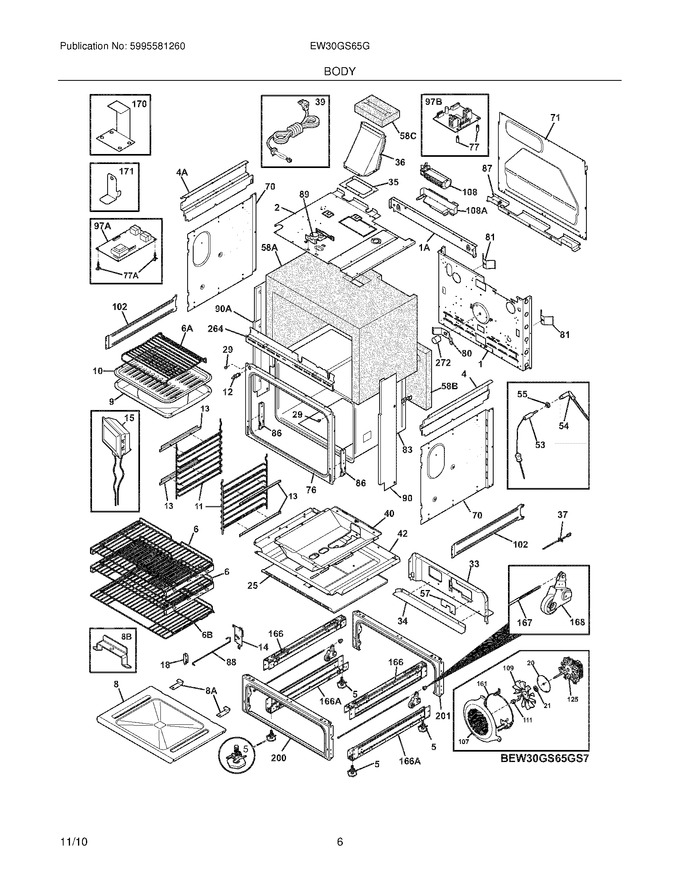

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258922		Shield,insulation ,upper		Appelez-nous	-
4	318905700		Panel,side ,rh Upper				$ 62.79
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	318903105		Shelf,oven ,(2)				$ 416.08
8	318290503		Panel,oven ,bottom   (Replaces: 318290502)		Appelez-nous	-
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318903300		Rack,oven Shelf ,(2)				$ 105.80
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
18	318562300		Bracket,rod				$ 16.87
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
25	318291900		Bracket,shield ,lower				$ 94.27
29	316517600		Spacer,oven Door				$ 12.05
33	318287800		Panel,valve Mtg.		Appelez-nous	-
34	318289401		Panel,valve Filler		Appelez-nous	-
35	318291300		Seal,flue Cavity		Appelez-nous	-
36	318288801		Box,flue Assy.		Appelez-nous	-
39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
40	318291800		Box,oven Burner		Appelez-nous	-
42	318288701		Bracket,body ,middle				$ 117.02
55	316247700		Nut,mounting				$ 18.20
57	318268300		Cover,burner Opening		Appelez-nous	-
70	318259114		Shield,insulation ,sides ,(2)				$ 96.81
71	318260007		Panel,rear Box				$ 102.90
76	318056236		Front,oven		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
83	318327011		Liner,oven				$ 293.42
86	316580700		Receptacle,hinge ,(2)   (Replaces: 316508600)			Immediately	$ 30.47
87	318260624		Bracket,cable Mtg.		Appelez-nous	-
88	318376505		Rod,latch				$ 13.72
90	318905802		Panel,side ,white ,rh		Appelez-nous	-
102	318327500		Panel,reinforcement		Appelez-nous	-
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade   (Replaces: 318398300)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
166	318298400		Bracket,base Support ,(2)				$ 59.48
167	318147811		Screw,lock ,adjusting				$ 31.19
168	318302400		Wheel & Bracket Assy,adjustable ,(2)				$ 75.13
170	318335700		Anti-tip & Accessories				$ 56.89
171	318335200		Bracket,anti-tilt				$ 31.90
200	318298226		Frame,drawer ,front				$ 107.00
201	318298233		Frame,drawer ,black   (Replaces: 318298230)				$ 45.36
264	318906301		Trim,vent		Appelez-nous	-
272	318249409		Tube,protector		Appelez-nous	-
1A	318905600		Back,main ,upper				$ 55.24
4A	318905701		Panel,side ,lh Upper				$ 75.14
58A	318386101		Insulation,oven Wrapper				$ 182.40
58B	318285085		Insulation,oven Back		Appelez-nous	-
58C	318285097		Insulation,flue		Appelez-nous	-
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318908006		Shelf,oven   (Replaces: 318908003)			Immediately	$ 232.91
77A	316114100		Spacer				$ 60.96
8A	318367401		Bracket,retainer ,(2)		Appelez-nous	-
8B	318403200		Bracket,service Panel ,(2)		Appelez-nous	-
90A	318905803		Panel,side ,white ,lh				$ 63.58
F108	318073028		Motor,blower			Immediately	$ 271.69
F108	318251300		Bracket,fan Support				$ 54.60
F125	5304463302		Motor-convection			Immediately	$ 259.95
F14	318562200		Sensor Assy,w/switch ,and Bracket				$ 257.99
F161	318255504		Element,convection ,350 W				$ 97.07
F166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F53	5304504202		Probe,meat Temp   (Replaces: 318601302)			Immediately	$ 106.19
F54	318601206		Receptacle,probe			Immediately	$ 171.52
F89	318261229		Motor,latch Assy   (Replaces: 318261211)			Immediately	$ 93.62
F97A	316443917		Board,relay				$ 363.64
F97B	316519200		Board,variable Speed			Immediately	$ 256.24
FNI	318402373		Harness,wiring ,relay Board		Appelez-nous	-
FNI	318306664		Harness,wiring ,main		Appelez-nous	-
NI	5304500008		Screw,10-24 X 1.750   (Replaces: 5304416408)				$ 12.13
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304435874		Plate,covering ,probe		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304456367		Rivet,ladder Bracket ,(8)				$ 13.99
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5304471183		Screw,6-32 X 17/32				$ 9.27
NI	318403105		Bracket,bridge ,(2)   (Replaces: 318403100)				$ 49.62
NI	318165800		Spacer				$ 17.72
NI	5303325980		Screw,10-32 X 0.437				$ 12.76
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
