Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303935355		Valve,12k Burner ,w/mtg Screw		Appelez-nous	-
12	316540900		Screw,burner ,head Mtg ,(8)			Immediately	$ 15.17
15	316091600		Bracket-regulator				$ 73.56
20	316496001		Baffle,oven Burner				$ 78.33
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	316416300		Bracket,safety Valve		Appelez-nous	-
F1	316417900		Manifold Pipe				$ 146.71
F10	316438000		Burner,sealed ,12k				$ 67.81
F10A	316438200		Burner,sealed ,5k			Immediately	$ 56.70
F10C	316558300		Burner,sealed ,9.5k			Immediately	$ 52.45
F11	316536609		Ignitor/orifice Assy.,top Burner ,right Front,12k ,w/holder ,tube		Appelez-nous	-
F11A	316536611		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,lp Gas ,w/holder ,tube				$ 101.50
F11C	316536604		Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube				$ 105.84
F11D	316536606		Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,lp Gas ,w/holder ,tube		Appelez-nous	-
F13	316545800		Tube,3/8 ,aluminum , Rgltr To Manf ,with Fittings		Appelez-nous	-
F14	316416702		Regulator,pressure ,lp Gas		Appelez-nous	-
F16	316065006		Tube-valve To Rgltr,3/8   (Replaces: 316436500)				$ 122.09
F17	3203459		Valve-safety				$ 303.64
F18	316114300		Burner,oven				$ 169.88
F19	5304509706		Ignitor,oven Kit ,w/nut & Instr   (Replaces: 316489402)			Immediately	$ 189.59
F2A	5303935353		Valve,5k Burner ,w/mtg Screw		Appelez-nous	-
F2C	5303935354		Valve,9k Burner ,w/mtg Screw		Appelez-nous	-
F3	316580611		Harness-ignitor			Immediately	$ 83.92
F44A	316527503		Orifice,top Burner ,12k		Appelez-nous	-
F44B	316527505		Orifice,top Burner ,5k ,lp				$ 12.89
F44C	316527501		Orifice,top Burner ,9.5k				$ 18.43
F47	GRLP3		Lp Conversion Kit,w/instructions				$ 57.11
F8	808608802		Module,spark   (Replaces: 316262401)			Immediately	$ 82.93
NI	5304535516		Harness-ignitor   (Replaces: 316580601)				$ 68.28
NI	316257400		Bracket,spark Module				$ 15.17
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	316417518		Instructions,lp Conversion		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316566900		Sleeve,insulator		Appelez-nous	-

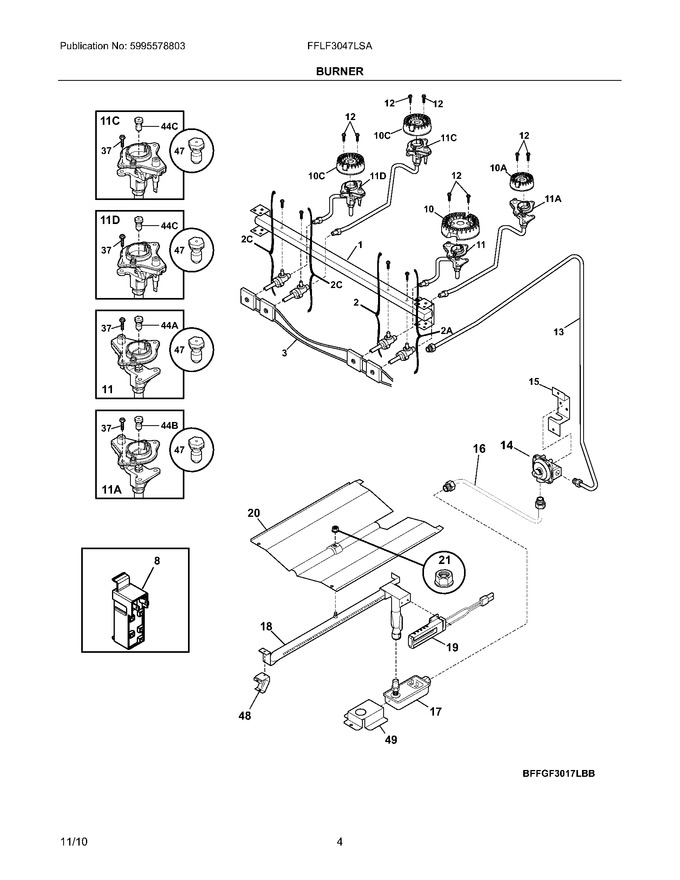

    View Diagram in Separate Window       Print Part List
