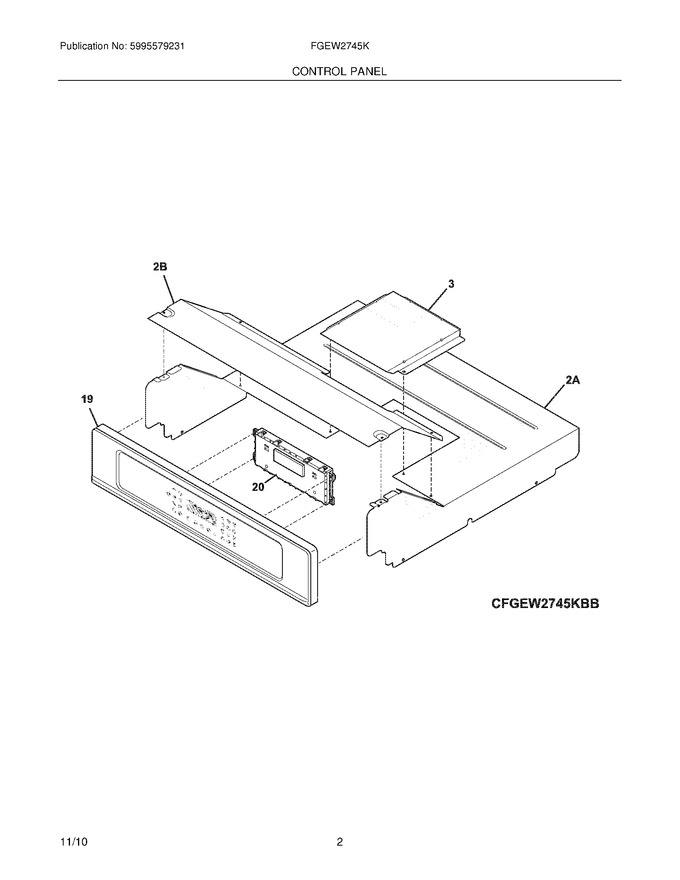

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577800		Box,fan Service		Appelez-nous	-
2A	318257306		Shield,oven Top		Appelez-nous	-
2B	318260105		Cover,box		Appelez-nous	-
F19	318575124		Panel Assembly,control ,black ,w/overlay-trim		Appelez-nous	-
F20	316560147		Controller,electronic ,es530w0				$ 373.84
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
