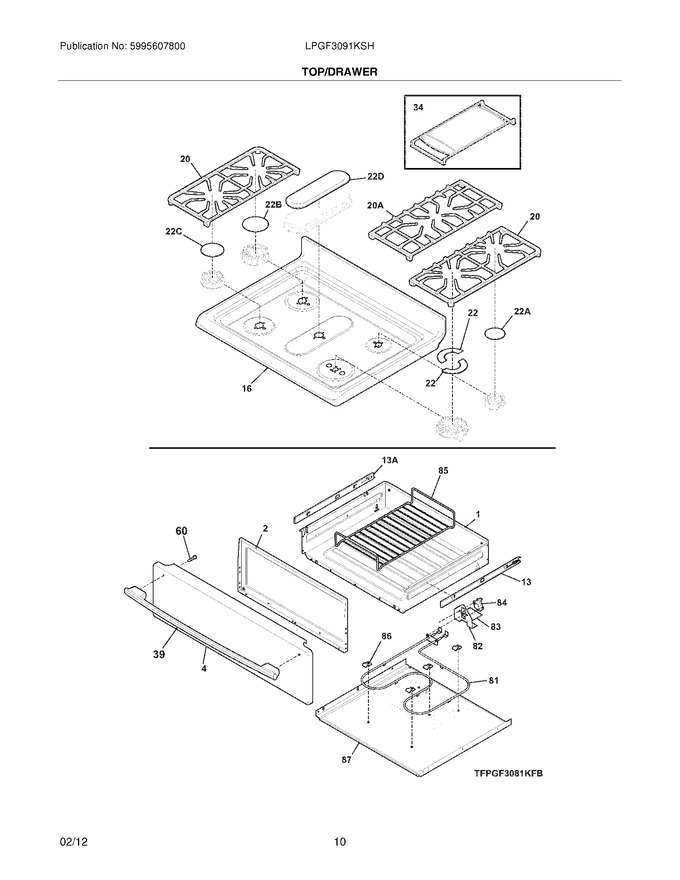

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer,warmer   (Replaces: 316408901)				$ 143.45
2	5304527988		Liner,black ,drawer   (Replaces: 316403203)			Immediately	$ 26.54
4	316409315		Panel,drawer ,stainless ,outer				$ 225.49
13	316415000		Glide,warmer ,inner Rh				$ 58.82
16	316513908		Maintop Panel,stainless		Appelez-nous	-
20	316546202		Grate,burner ,black ,sides ,(2)		Appelez-nous	-
22	316262204		Cap,17k Twin Burner ,black ,(2)			Immediately	$ 72.80
34	316465800		Griddle				$ 142.49
37	316240600		Screw,assy Mtg ,(8) ,ignitor/orifice			Immediately	$ 12.13
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 112.88
60	316001013		Screw,wafer Head `10-24 X 1.375 ,handle Mtg.			Immediately	$ 2.41
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc,warmer Drawer				$ 51.03
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
20A	316546102		Grate,burner ,black ,center		Appelez-nous	-
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508442		Cap,9.5k Burner ,black   (Replaces: 316261804)			Immediately	$ 36.55
22D	316559604		Cap,9.5k Burner ,black ,oval				$ 72.30
26A	316498200		Bracket-support,chassis ,aluminum				$ 52.33
F81	316437300		Element,warmer Drawer				$ 106.17
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	5304516184		Harness,warm Base   (Replaces: 316525623)				$ 28.51
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
