01 - Cover
03 - Oven,cabinet

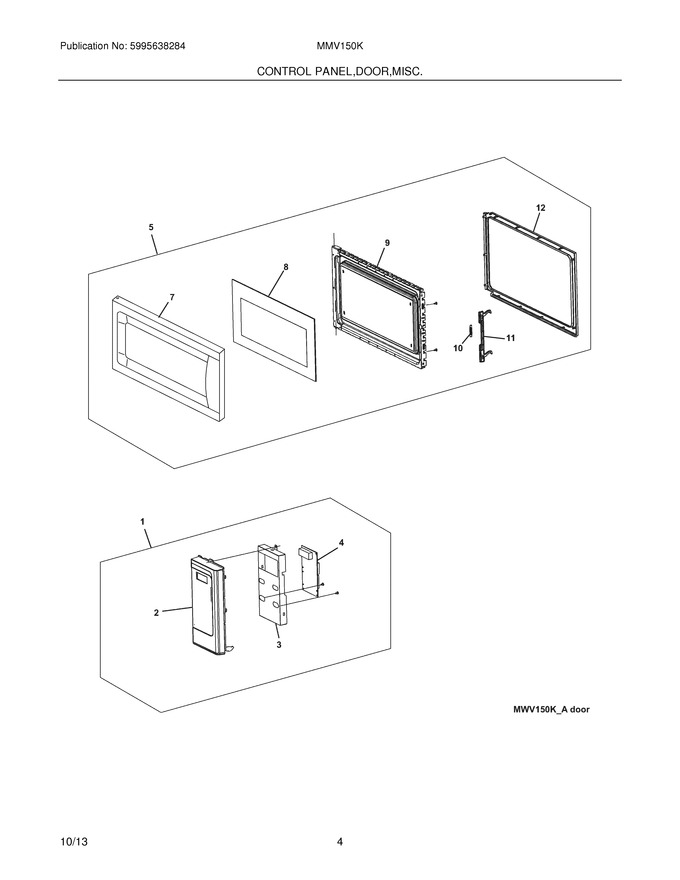

05 - Control Panel,door,miscellaneous
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304472442 | Frame,control Panel ,black |
|
- | |||||
| 3 | 5304464065 | Panel,control Mount ,bracket |
|
$ 68.04 | |||||
| 5 | 5304472468 | Door Assembly,black |
|
$ 433.76 | |||||
| 7 | 5304472470 | Panel,outer Door ,black |
|
- | |||||
| 8 | 5304472443 | Panel,glass ,black ,outer Door |
|
- | |||||
| 9 | 5304472444 | Panel,inner Door ,black |
|
$ 280.49 | |||||
| 10 | 5304521953 | Spring,door Latch (Replaces: 5304464069) |
|
$ 7.23 | |||||
| 12 | 5304509640 | Choke Cover,inner Door (Replaces: 5304464071) |
|
$ 50.61 | |||||
| F1 | 5304472441 | Control Assembly,black |
|
$ 362.10 | |||||
| F11 | 4056021605 | Latch,door (Replaces: 5304464070) |
|
Immediately | $ 3.69 | ||||
| F4 | 5304503187 | Control Board,printed Circuit (Replaces: 5304472467) |
|
$ 494.48 |
